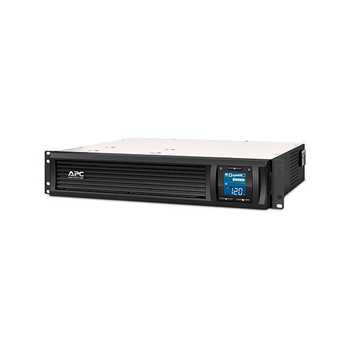

APC Smart-UPS SMT1000RM2UC 6-Outlet 700W/1000VA 120V 2U Rackmount LCD UPS System w/ SmartConnect

Brand:
(No reviews yet) Write a Review
Part Number #
SMT1000RM2UC
Availability:
In Stock
MSRP: £2,378.42
£1,982.02
Inc. VAT
MSRP: £1,982.02
£1,651.68
Ex. VAT
— You save £396.40
Get Bulk Pricing
Don't like the price? Make an offer!

Description

Specifications

  • Mfr Part Number: SMT1000RM2UC
  • Output:
    • Output Power Capacity: 700Watts / 1.0 kVA
    • Max Configurable Power: 700Watts / 1.0 kVA
    • Nominal Output Voltage: 120 V
    • Output Voltage Distortion: Less than 5%
    • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
    • Other Output Voltages: 110, 127
    • Load Crest Factor: 3 : 1
    • Topology: Line Interactive
    • Waveform Type: Sine wave
    • Output Connections: 6x NEMA 5-15R (Battery Backup)
    • Transfer Time: 6ms typical; 10ms maximum
  • Input:
    • Nominal Input Voltage: 120 V
    • Input Frequency: 50/60 Hz +/- 3Hz (auto sensing)
    • Input Connections: NEMA 5-15P
    • Cord Length: 8 ft / 2.44 m
    • Input voltage range for main operations: 82 ~ 144 V
    • Input voltage adjustable range for mains operation: 75 ~ 154 V
    • Number of Power Cords: 1
    • Other Output Voltages: 110, 127
  • Batteries & Runtime:
    • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
    • Typical recharge time: 3 hours
    • Expected Battery Life (years): 4 ~ 6
    • RBC Quantity: 1
  • Communications & Management:
    • Interface Ports: SmartSlot, USB
    • Control panel: Multi-function LCD status and control console
    • Audible Alarm: Alarm when on battery; distinctive low battery alarm; configurable delays
    • Available SmartSloyt Interface Quantity: 1
  • Surge Protection and Filtering:
    • Surge energy rating: 680 Joules
    • Filtering: Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449
  • Audible noise at 1 meter from surface of unit: 41.0 dBA
  • Online Thermal Dissipation: 175.0 BTU/hr
  • Approvals: CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
  • Rack Height: 2U
  • Color: Black
  • Dimensions (WxDxH): 17.00 x 18.78 x 3.39 inch / 432.0 x 477.0 x 86.0 mm
  • Weight: 55.78 lbs / 25.3 kg
  • RoHS Compliant
