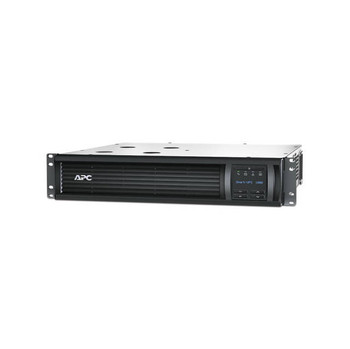

APC Smart-UPS RM SMT1000RM2U 700W/1000VA 120V 2U Rackmount LCD UPS System

Specifications

• Mfr Part Number: SMT1000RM2U
• Output:
  • Output Power Capacity: 700 Watts / 1000 VA
  • Max Configurable Power: 700 Watts / 1000 VA
  • Nominal Output Voltage: 120 V
  • Output Voltage Distortion: Less than 5% at full load
  • Output Frequency (sync to mains): 57~63Hz for 60Hz nominal
  • Crest Factor: Upto 5:1
  • Waveform Type: Sine wave
  • Output Connections: 6x NEMA 5-15R
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 50/60 Hz +/- 3Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 8 ft / 2.44 m
  • Input voltage range for main operations: 82 ~ 144 V
  • Input voltage adjustable range for mains operation: 75 ~ 154 V
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
  • Typical recharge time: 3 hours
• Communications & Management:
  • Interface Ports: SmartSlot, USB
  • Available SmartSlot Interface Quantity: 1
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery, distinctive low battery alarm, configurable delays
  • Emergency Power Off (EPO): Optional
• Surge Protection and Filtering:
  • Surge energy rating: 459 Joules
  • Filtering: Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449
• Audible noise at 1 meter from surface of unit: 45 dBA
• Online Thermal Dissipation: 56 BTU/hr
• Regulatory Approvals: CSA, FCC Part 15 Class A, UL 1778
• Rack Height: 2U
• Color: Black
• Dimensions: 17.0 x 18.0 x 3.5 inch/ 432.0 x 457.0 x 89.0 mm
• Weight: 62.0 lbs/ 28.18 kg
