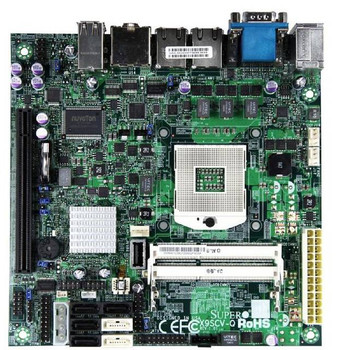

Supermicro X9SCV-QV4-O Socket G2/ Intel QM67/ DDR3 SODIMM/ A&V&2GbE/ Mini-ITX Motherboard

Specifications

• Mfr Part Number: X9SCV-QV4-O
• CPU: Socket G2 (rPGA 988B)
  • Supports Intel 2nd Generation Core i7/ i5/ i3, Celeron B800 Series Processors
  • Supports up to 45W TDP
• Chipset: Intel QM67
• Memory: 2x 204pin DDR3-1333/1066 SODIMM Slots, Non-ECC, Unbuffered, Max Capacity of 16GB
• Slots: 1x PCI-Express 2.0 x16 Slot
• SATA: 4x SATA2 Ports, Support RAID 0, 1, 5, 10; 2x SATA3 Ports, Support RAID 0, 1
• Audio: Realtek ALC889 High Definition Audio CODEC
• Video: Integrated Intel Graphics Controller
• LAN: Intel 82579LM and 82574L Gigabit Ethernet Controller
• Ports: 11x USB 2.0 Ports (6 rear, 4 via headers, 1 type A), 2x Serial Ports (1 rear, 1 via header), 1x VGA Port, 2x HDMI Ports, 2x RJ45 LAN Ports
• Form Factor: Mini-ITX, 6.75 x 6.75 inch / 17.15 x 17.15 cm
• RoHS Compliant
