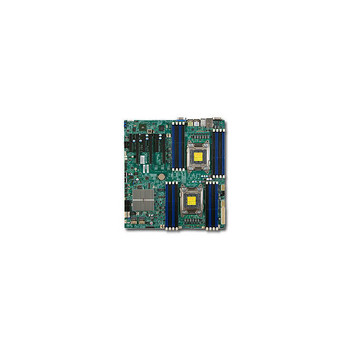

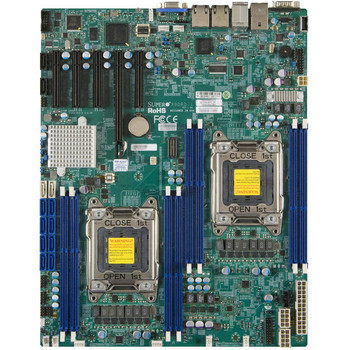

Supermicro X9DRH-IF-O Dual LGA2011/ Intel C602/ DDR3/ SATA3/ V&2GbE/ EATX Server Motherboard

Specifications

• Mfr Part Number: X9DRH-IF-O
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 Processor
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Support up to 135W TDP
• Chipset: Intel C602
• Memory: 16x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Support up to 512GB ECC/REG Memory or up to 128GB ECC/Non-ECC Unbuffered Memory
• Slots: 1x PCI-Express 3.0 x16 Slot, 6x PCI-Express 3.0 x8 Slots
• SATA: 2x SATA3 Ports (via AHCI), 8x SATA2 Ports (four via AHCI, four via SCU), Support RAID 0, 1, 5, 10
• Video: Matrox G200eW Graphics Controller
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 7x USB 2.0 Ports (4 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Extended ATX, 12.0 x 13.0 inch / 30.48 x 33.00 cm
• RoHS Compliant
