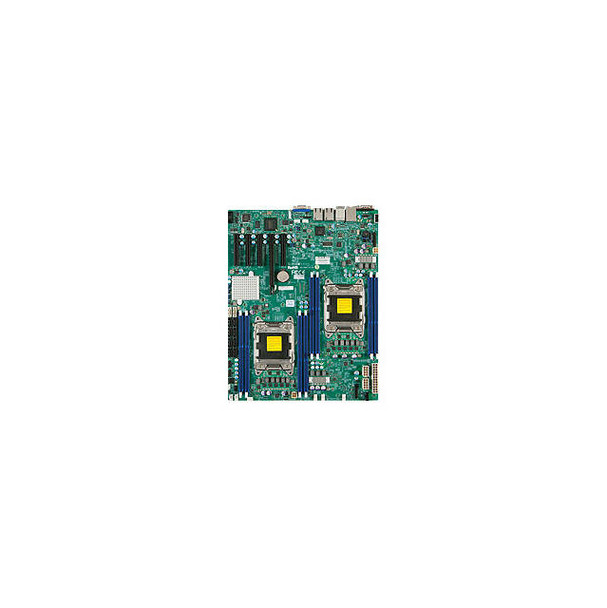

Supermicro X9DRD-IF-B Dual LGA2011/ Intel C602/ DDR3/ SATA3/ V&2GbE/ EATX Server Motherboard

Specifications

• Mfr Part Number: X9DRD-IF-B
• CPU: Dual LGA2011; Supports Intel Xeon E5-2600 Series Processors; Supports up to 135W TDP; Cache up to 20MB; QPI up to 8 GT/s
• Chipset: Intel C602
• Memory: 8x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 256GB ECC/REG Memory or up to 64GB ECC/Un-buffered Memory
• Slots: 1x PCI-Express 3.0 x16 Slot; 4x PCI-Express 3.0 x8 Slots
• SATA: 8x SATA2 Ports, 2x SATA3 Ports; Supports RAID 0, 1, 5, 10
• Video: Integrated G200 Graphics Controller
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller, 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 9x USB 2.0 Ports (4 rear, 4 via headers, 1 Type A); 2x Serial Ports (1 rear, 1 via header); 1x VGA Port; 2x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Extended ATX, 10.3 x 13.0 inch / 26.2 x 33.0 cm
• RoHS Compliant
