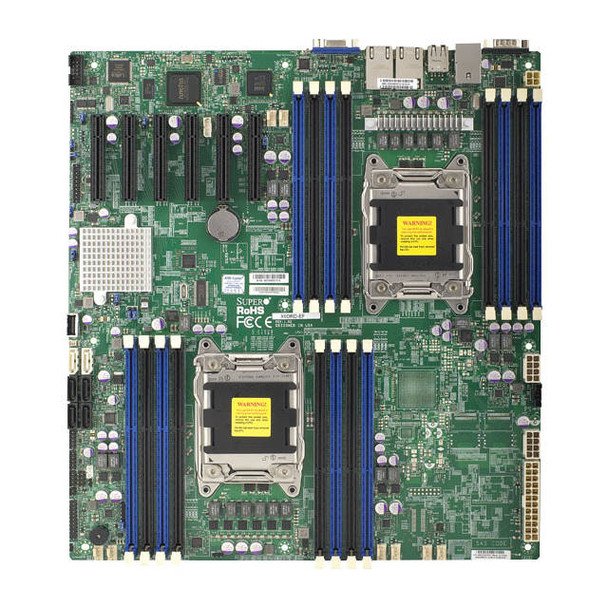

Supermicro X9DRD-EF-B Dual LGA2011/ Intel C602J/ DDR3/ SATA3/ V&2GbE/ EATX Server Motherboard

Specifications

• Mfr Part Number: X9DRD-EF-B
• CPU: Dual LGA2011
  • Supports Intel Xeon E5-2600 Series Processors
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Supports up to 135W TDP
• Chipset: Intel C602J
• Memory: 16x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 512GB ECC/REG Memory or up to 128GB ECC/Non-ECC Unbuffered Memory
• Slots: 6x PCI-Express 3.0 x8 Slots
• SATA: 2x SATA3 Ports, 4x SATA2 Ports; Support RAID 0, 1, 5, 10
• Video: Matrox G200eW Graphics Controller
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 9x USB 2.0 Ports (4 rear, 4 via headers, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: EATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
• RoHS Compliant
