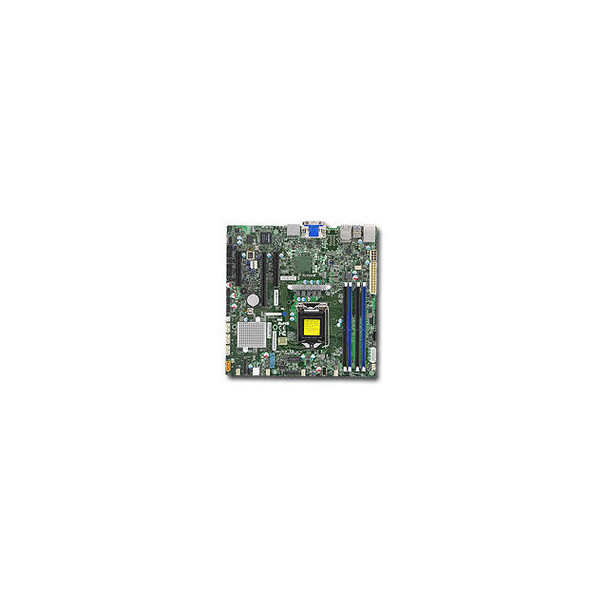

Supermicro X11SSZ-QF-O LGA1151/ Intel Q170/ DDR4/ SATA3&USB3.0/ A&V&2GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: X11SSZ-QF-O
• CPU: LGA1151
  • Supports 6th Generation Intel Core i7/ i5/ i3, Pentium, Celeron Processors
  • Support up to 95W TDP
• Chipset: Intel Q170 Express
• Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x8 Slots (run at x4)
• SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10
• Audio: Realtek ALC888S High Definition Audio CODEC
• Video: ASPEED AST2400 BMC and Intel HD Graphics 530
• LAN: Intel PHY i219LM + Intel i210AT Gigabit Ethernet Controllers
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 9x USB 2.0 Ports (2 rear, 6 via headers, 1 Type A), 2x DisplayPorts, 1x DVI-I Port (from Intel HD Graphics), 1x VGA Port (from AST2400), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN port
• Form Factor: MicroATX, 9.6 x 9.6 inch / 22.4 x 22.4 cm
