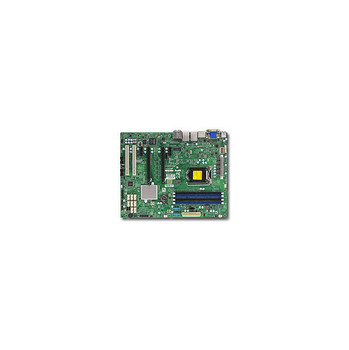

Supermicro X11SAE-O LGA1151/ Intel C236/ DDR4/ SATA3&USB3.1/ A&2GbE/ ATX Motherboard

SpecificationsMfr Part Number: X11SAE-OCPU: LGA1151Supports Intel Xeon E3-1200 v5 ProcessorSupports 6th Generation Intel Core i7/ i5/ i3/ ProcessorsSupport up to 95W TDPChipset: Intel C236Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GBSlots: 2x PCI-Express 3.0 x16 Slots (run at 16/NA or 8/8), 3x PCI-Express 3.0 x1 Slots, 2x PCI Slots (5V, 32bit)SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10Audio: Realtek ALC888S High Definition Audio CODECLAN: Intel I210-AT + Intel PHY I219LM Gigabit Ethernet ControllersPorts: 2x USB 3.1 Port, 6x USB 3.0 Ports (2 rear, 4 via headers), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN PortsForm Factor: ATX, 12.0 x 9.6 inch / 30.5 x 22.4 cm
