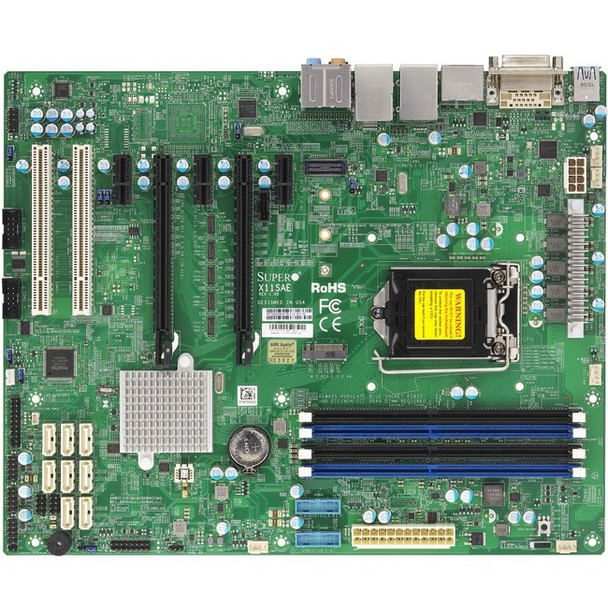

SUPERMICRO X11SAE - motherboard - ATX - LGA1151 Socket - C236

Specifications

Manufacturer: Supermicro Computer, Inc

Manufacturer Part Number: MBD-X11SAE-O

Manufacturer Website Address: http://www.supermicro.com

Brand Name: Supermicro

Product Model: X11SAE

Product Name: X11SAE Workstation Motherboard

Marketing Information: Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)Supermicro's single processor Socket H4 designs feature the Intel® C236 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.

Product Type: Workstation Motherboard

Processor & Chipset

Chipset Manufacturer: Intel

Total Processor Supported: 1

Processor Socket: Socket H4 LGA-1151

Processor Supported: Xeon, Core i7, Core i5, Core i3

Memory

Number of Memory Slots: 4

Memory Form Factor: DIMM, UDIMM

Maximum Memory: 64 GB

Memory Speed Supported: 2.13 GHz, 1.87 GHz, 1.60 GHz

Memory Technology: DDR4 SDRAM

I/O Controller

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 01510

Video

Onboard Video: CPU Dependent Video

Graphics Controller Manufacturer: Intel

Audio

Audio Channels: 7.1

Network & Communication

Gigabit Ethernet: Yes

I/O Expansions

Number of Total Expansion Slots: 7

Total Number of PCI Express Slots: 5

Number of PCI Express x1 Slots: 3

Number of PCI Express x16 Slots: 2

Interfaces/Ports

Total Number of USB Ports: 6

Number of USB 3.0 Ports: 2

Number of USB 3.1 Ports: 2

HDMI: Yes

Display

Port: Yes

DVI: Yes

Onboard Interfaces

Number of SATA Interfaces: 8

Number of M.2 Interfaces: 1

Total Number of Onboard USB Ports: 10

Number of Onboard USB 3.0 Ports: 4

Physical Characteristics

Form Factor: ATX

Width: 12"

Depth: 9.6"

Miscellaneous

Compatibility: Supermicro

Chassis: Mid/Mini Tower Chassis: SC732D4-903B SC732D4-865B 4U / Tower Chassis: SC743TQ-1200B-SQ SuperServer(s) Model(s): SYS-5039A-IL

Environmentally Friendly: Yes

Environmental Certification: RoHS
