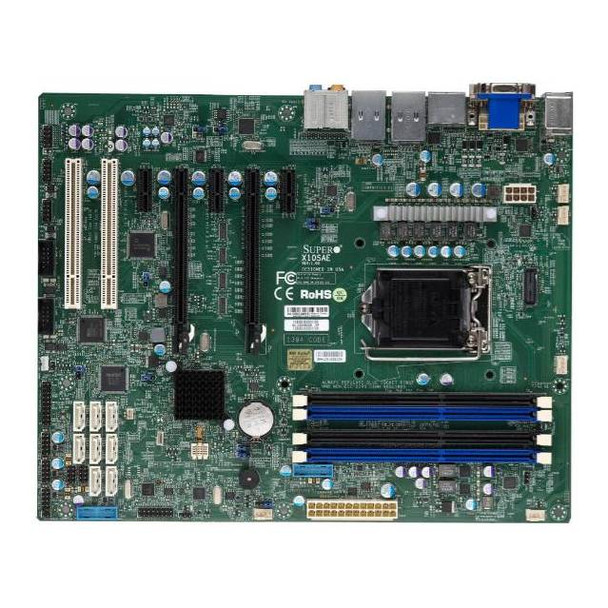

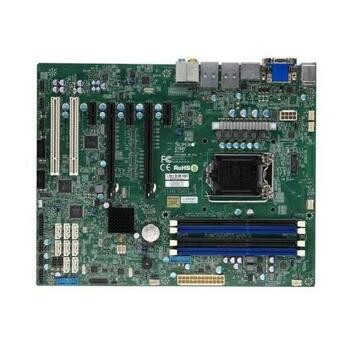

Supermicro X10SAE-B LGA1150/ Intel C226 PCH/ DDR3/ SATA3&USB3.0/ A&2GbE/ ATX Server Motherboard

SpecificationsMfr Part Number: X10SAE-BCPU: LGA1150Supports Intel Xeon E3-1200 v3 ProcessorsSupports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron ProcessorsChipset: Intel C226 ExpressMemory: 4x 240pin DDR3-1600 DIMM Slots, ECC/Non-ECC, Unbuffered, Max Capacity of 32GBSlots: 2x PCI-Express 3.0 x16 Slots (one runs at x8), 3x PCI-Express 2.0 x4 Slots (run at x1), 2x PCI Slots (5V, 32-bit)SATA: 8x SATA3 Ports, Six Support RAID 0, 1, 5, 10 (via PCH), Two Support RAID 0, 1 (via ASM1061)Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODECLAN: Intel i217LM and Intel i210AT Gigabit Ethernet ControllersPorts: 6x USB 3.0 Ports (2 rear, 4 via headers), 10x USB 2.0 Ports (4 rear, 6 via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI Port, 1x HDMI Port, 1x DisplayPort, 2x RJ45 LAN Ports, Audio I/O JacksForm Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.40 cmRoHS Compliant
