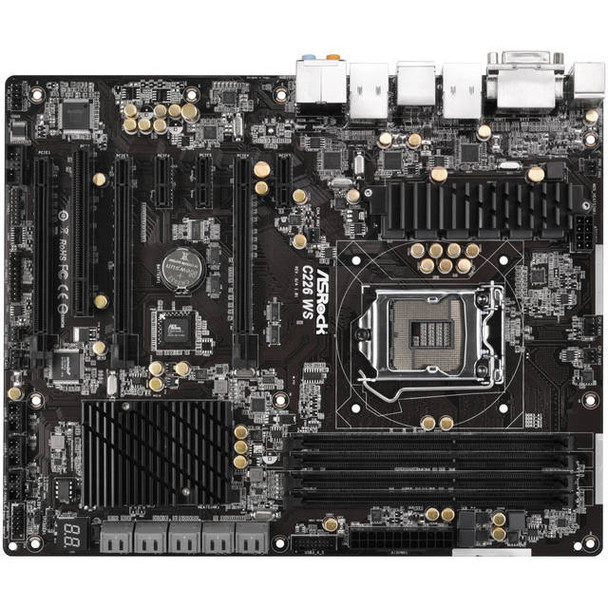

ASRock Rack C226 WS/C2 LGA1150/ Intel C226/ DDR3/ SATA3&USB3.0/ A&2GbE/ ATX Server Motherboard

SpecificationsMfr Part Number: C226 WS/C2CPU: LGA1150Supports New 4th and 4th Generation Intel Xeon E3-1200 v3/ Core i7/i5/i3/ Pentium/ Celeron Processors6 Power Phase DesignSupports Intel K-Series CPUSupports Intel Turbo Boost 2.0 TechnologySupports Hyper-Threading TechnologyChipset: Intel C226Memory: 4x 240pin DDR3-1600/1333 DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 32GBSlots: 2x PCI-Express 3.0 x16 Slots (run at x16/x0 or x8/x8), 1x PCI-Express 2.0 x16 Slot (runs at x4), 3x PCI-Express 2.0 x1 Slots, 1x PCI SlotSATA: 10x SATA3 Ports, Six by Intel C226 Support RAID 0, 1, 5, 10, Four by Marvell 9172 Support RAID 0, 1Audio: Realtek ALC1150 High Definition Audio CODECLAN: 2x Intel i210 Gigabit Ethernet ControllersPorts: 6x USB 3.0 Ports (4 rear, 2 via header), 10x USB 2.0 Ports (4 rear, 6 via headers), 1x PS/2 Keyboard/Mouse Port, 1x DVI-I Port, 1x HDMI Port, 1x DisplayPort, 1x eSATA3 Port, 1x IEEE1394 Port, 1x SPDIF, 2x RJ45 LAN Ports, Audio I/O JacksPower Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power ConnectorForm Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
