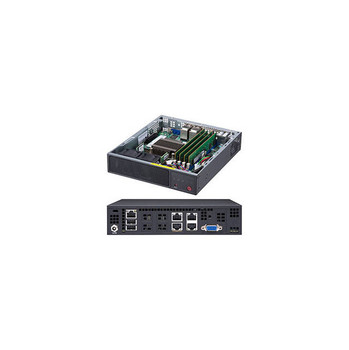

Supermicro SuperServer SYS-E300-9A Intel Atom C3858 84W Mini-1U Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-E300-9A

• Motherboard: Super A2SDi-TP8F
• Processor: Intel Atom C3858 processor, Supports 25W TDP
• Chipset: System on Chip
• Memory: 4x DDR4- 2400/ 2133/ 1866/1600 MHz DIMM Slots, Supports up to 64GB DDR4 ECC/non-ECC Unbuffered SO-DIMM Memory
• Slots: 1x PCI-E 3.0 x4 slot

• SATA: 2x SATA3 Ports

• Graphics: Integrated Aspeed AST2400 BMC Graphics
• LAN: Intel i350-AM4 Quad Port Gigabit Ethernet Controllers; Quad LAN (2x 10GBase-T, 2x 10Gb SFP+) via Intel C3000 SoC

• Drive Bays: 2x 2.5" fixed Drive bays, one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)
• Ports: 2x USB 3.0 ports (rear), 1x VGA Port, 4x RJ45 LAN ports, 2x 10G SFP+ LAN ports, 2x RJ45 10GBase-T LAN ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Mini-1U

• Power Supply: 84W DC Power Adapter
• System Cooling: 2x 40mm chassis fans
• Front Panel:
  • Buttons: Power On/Off

  • LEDs: Power (Hard drive activity LED)
• Color: Black

• Dimensions (WxDxH): 10.0 x 8.9 x 1.7 inch / 254.0 x 226.0 x 43.0 mm
• Net Weight: 3.45 lbs / 1.56 kg
• RoHS Compliant
