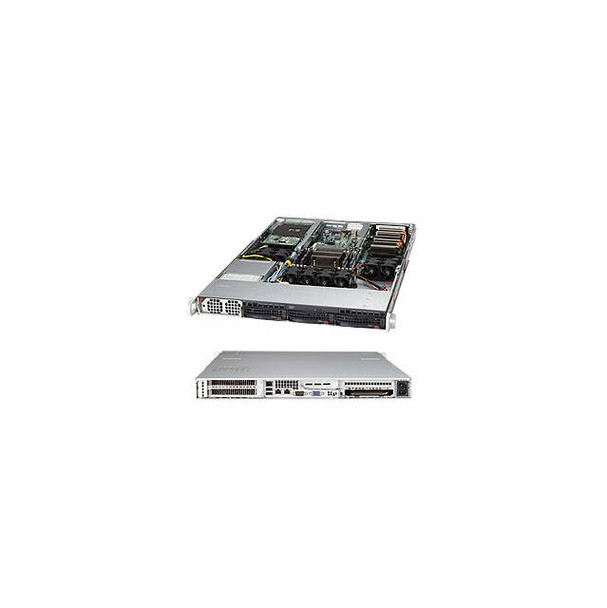

Supermicro SuperServer SYS-5017GR-TF LGA2011 1400W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-5017GR-TF
• Motherboard: Super X9SRG-F
• Processor: LGA2011
  • Supports Intel Xeon E5-2600 Family Processors
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Supports up to 8 Cores
  • Supports up to 130W TDP
• Chipset: Intel C602
• Memory: 8x 240pin DDR3-1600/1333/1066 DIMM Slots, Supports up to 256GB ECC/REG Memory
• Slots: 2x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x8 Slot (Low-profile)
• SATA: 2x SATA3 Ports; 4x SATA2 Ports, Support RAID 0, 1, 5, 10
• Video: Integrated GPIO Graphics Controller
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller
• Drive Bays: 3x 3.5" Hot-swap Drive Bays
• Ports: 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 1400W 80 PLUS Platinum Certified High-efficiency AC Power Supply w/ Digital Switching Control & PMBus 1.2
• System Cooling: 8x Counter-rotating Fans with Optimal Fan Speed Control
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat/ Fan Fail/ UID
• Color: Black
• Dimensions (WxDxH): 17.2 x 28.2 x 1.7 inch / 437.0 x 716.0 x 43.0 mm
• Gross Weight: 41.4 lbs / 18.8 kg
• RoHS Compliant
