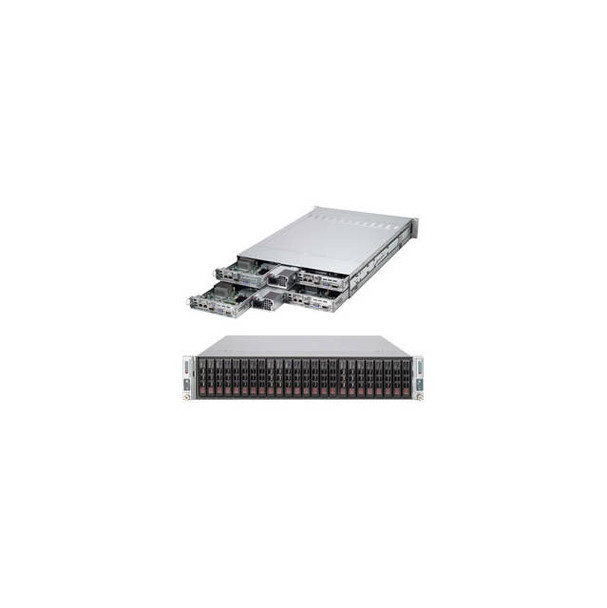

Supermicro SuperServer SYS-2028TR-H72R Four Node Dual LGA2011 1600W 2U Rackmount Server Barebone Syst

Specifications

• Mfr Part Number: SYS-2028TR-H72R
• Motherboard: Super X10DRT-H
• Processors per Node: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Cache up to 45MB
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset per Node: Intel C612 Express
• Memory per Node: 8x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots per Node: 1x PCI-Express 3.0 x16 Slot (Low-profile)
• SATA per Node: 8x SATA3 Ports, Support RAID 0, 1
• SAS per Node: 6x SAS2 Ports, Support RAID 0, 1, 5, 6, 10, 50
• Video per Node: ASPEED AST2400 BMC Graphics
• LAN per Node: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays per Node: 6x 2.5" Hot-swap SAS2/SATA3 HDD Trays
• Ports per Node: 2x USB 3.0 Ports, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 2U Rackmount
• Power Supply: 1600W 80 PLUS Titanium Certified Single Output Titanium Level High-efficiency Redundant Power Supply
• System Cooling: 4x 8cm Heavy Duty Fans w/ PWM Fan Speed Control
• Front Panel:
  • Buttons: Power On/Off, System Reset, UID
  • LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
• Color: Black
• Dimensions (WxDxH): 17.25 x 26.75 x 3.47 inch / 438.0 x 679.0 x 88.0 mm
• Gross Weight: 103.0 lbs / 46.7 kg
• RoHS Compliant
