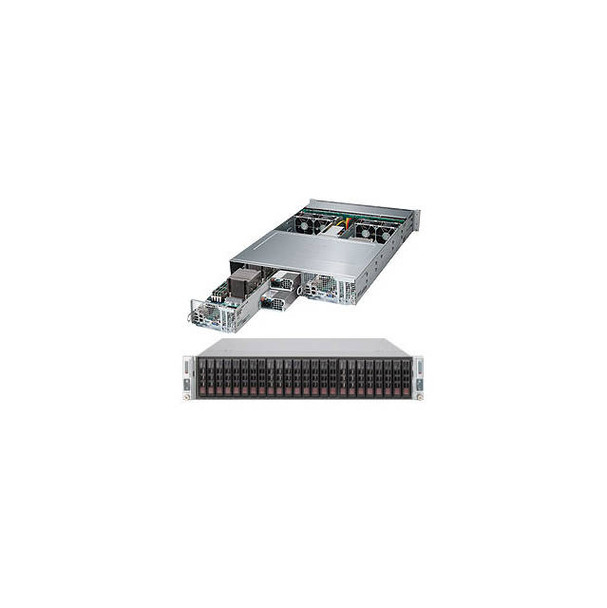

Supermicro SuperServer SYS-2028TP-DTTR Two Node Dual LGA2011 1280W 2U Rackmount Server Barebone Syste

SpecificationsMfr Part Number: SYS-2028TP-DTTR INNER+OUTER BOXMotherboard: Super X10DRT-PTProcessors per Node: Dual LGA2011Support Intel Xeon E5-2600 v3 Family ProcessorsSupport up to 18 CoresCache up to 45MBQPI up to 9.6 GT/sSupport up to 145W TDPChipset per Node: Intel C612 ExpressMemory per Node: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG MemorySlots per Node: 2x PCI-Express 3.0 x16 Slots (1 Low-profile, 1 for GPU/Xeon Phi), 1x PCI-Express 3.0 x8 SlotSATA per Node: 8x SATA3 Ports, Support RAID 0, 1, 5, 10Video per Node: ASPEED AST2400 BMC GraphicsLAN per Node: Intel X540 Dual Port 10-Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)Drive Bays per Node: 8x 2.5" Hot-swap SATA HDD TraysPorts per Node: 2x USB 3.0 Ports, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN PortForm Factor: 2U RackmountPower Supply: 1280W 80 PLUS Platinum Certified Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2System Cooling: 4x 8cm Heavy Duty PWM Fans w/ Optimal Fan Speed ControlFront Panel: Buttons: Power On/Off, System Reset, UIDLEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)Color: BlackDimensions (WxDxH): 17.25 x 28.50 x 3.47 inch / 438.0 x 724.0 x 88.0 mmGross Weight: 85.0 lbs / 38.6 kgRoHS Compliant
