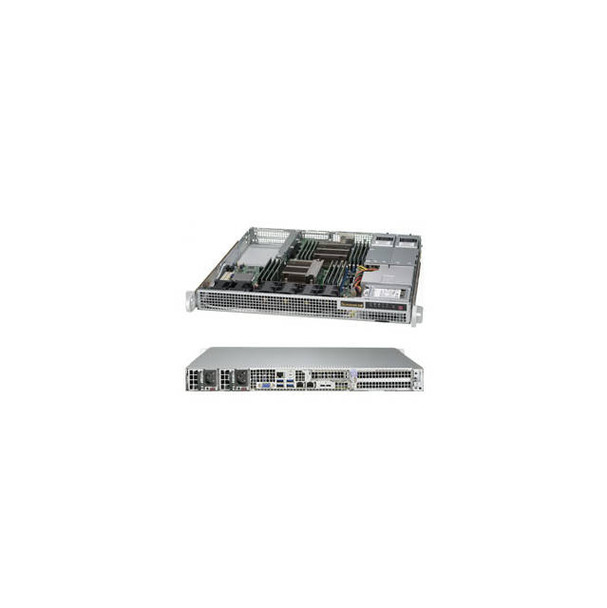

Supermicro SuperServer SYS-1028R-WMR Dual LGA2011 400W 1U Rackmount Server Barebone System

Specifications

• Mfr Part Number: SYS-1028R-WMR
• Motherboard: Super X10DRW-E
• Processor: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Cache up to 45MB
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
• Slots: 2x PCI-Express 3.0 x16 Slots (Full-height, Half-length)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2400 BMC Graphic
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
• Drive Bays: 2x 2.5" Fixed drive bays with bracket
• Backplane: SATA/ SAS HDD Backplane (SAS support requires optional SAS controller)
• Ports: 2x USB 3.0 ports (via header), 4x USB 2.0 Ports, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I2C
• System Cooling: 4x 40x56mm PWM fan; 2x fans for AOC cooling
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power LED, HDD Activity, 2x Network Activity, System Overheat
• Dimensions (WxDxH): 17.2 x 16.9 x 1.7 inch / 437.0 x 429.0 x 43.0 mm
• Weight: 16.5 lbs / 7.48 kg
• RoHS Compliant
