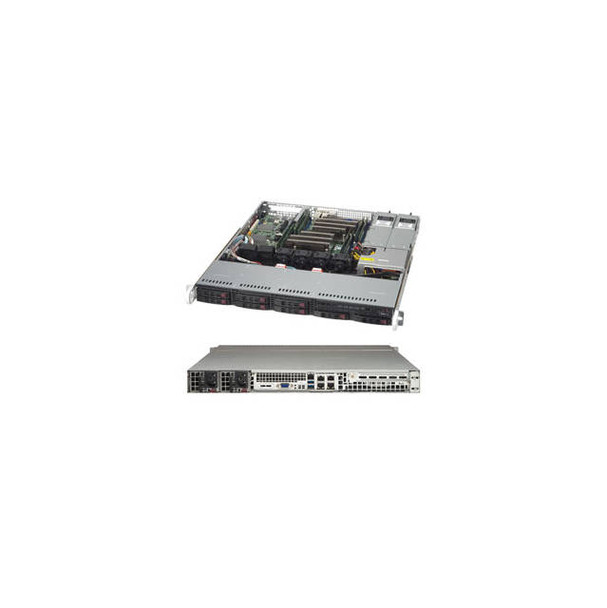

Supermicro SuperServer SYS-1028R-MCTR Dual LGA2011 600W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-1028R-MCTR
• Motherboard: Super X10DRL-CT
• Processor: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Cache up to 45MB
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 8x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots: 1x PCI-Express 3.0 x8 Slots (Full-height, Half-length)
• SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
• SAS: 8x SAS3 Ports, Support RAID 0, 1, 5, 6, 10, 50, 60
• Video: Aspeed AST2400 BMC Graphic
• LAN: Intel X540 Dual Port 10Gb Gigabit Ethernet Controller, Intel i210 Dual Port Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)

• Drive Bays: 8x 2.5" Hot-swap SAS/SATA HDD trays

• Backplane: SATA/SAS HDD Backplane
• Ports: 4x USB 3.0 ports (2 rear, 2 via header), 3x USB 2.0 ports (2 via header, 1 Type A), 1x VGA Port, 2x RJ45 LAN Ports, 2x RJ45 10GBase-T LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 600W 80 PLUS Platinum Certified high-efficiency redundant power supplies w/ PMBus
• System Cooling: 4x 4cm high performance PWM fans with optimal fan speed control
• Front Panel:
  • Buttons: Power On/Off, System Reset, UID
  • LEDs: Power Status LED, HDD Activity LED, 2x Network Activity LEDs, Universal Information LED
• Color: Black
• Dimensions (WxDxH): 17.20 x 19.98 x 1.70 inch / 437.0 x 508.0 x 43.0 mm
• Weight: 40.0 lbs / 18.15 kg
• RoHS Compliant
