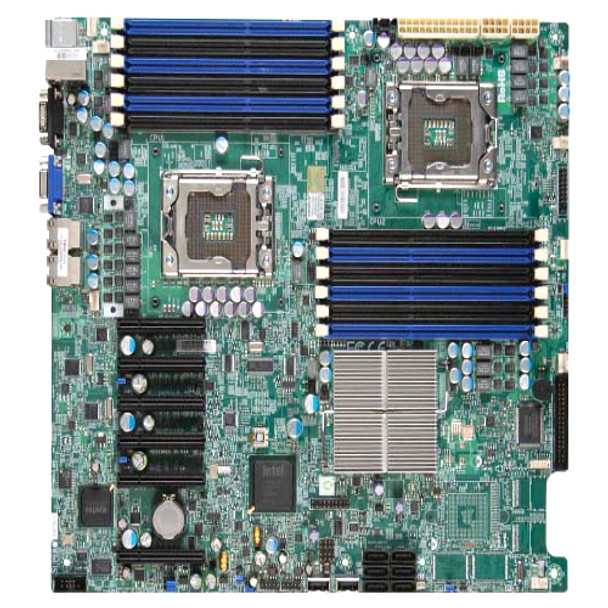

Supermicro X8DTE-F Server Motherboard - Intel Chipset - Socket B LGA-1366 - MBD-X8DTE-F-B

SpecificationsManufacturer: Supermicro Computer, IncManufacturer Part Number: MBD-X8DTE-F-BManufacturer Website Address: http://www.supermicro.comBrand Name: SupermicroProduct Model: X8DTE-FProduct Name: X8DTE-F Server MotherboardMarketing Information: The Supermicro X8DT6/X8DT6-F/X8DTE/X8DTE-F supports the Intel 5500 Series Processor platform, the first dual-processing platform that supports the Intel Quick-Path Interconnect (QPI) Technology, providing the next generation point-to-point system interface to replace the current Front Side Bus. With the 5500 Series Processor platform built in, the X8DT6/X8DT6-F/X8DTE/X8DTE-F offers substantial enhancement in system performance with increased bandwidth and unprecedented scalability optimized for high-end servers, High Performance Computing (HPC) systems and intensive applications.Product Type: Server MotherboardProcessor & ChipsetChipset Manufacturer: IntelTotal Processor Supported: 2Processor Socket: Socket B LGA-1366Processor Supported: Xeon Quad-coreXeon Dual-CoreMemoryNumber of Memory Slots: 12Maximum Memory: 96 GBMemory Speed Supported: 1.33 GHz1.07 GHz800 MHzMemory Standard: DDR3-1333/PC3-10600DDR3-1066/PC3-8500DDR3-800/PC3-6400Memory Technology: DDR3 SDRAMI/O ControllerController Type: Floppy ControllerSerial ATA/300RAID Supported: YesRAID Levels: 0151+0VideoOnboard Video: On-board Video ChipsetGraphics Controller Manufacturer: MatroxGraphics Controller Model: G200eWNetwork & CommunicationGigabit Ethernet: YesI/O ExpansionsNumber of Total Expansion Slots: 7Total Number of PCI Express Slots: 6Number of PCI Express x4 Slots: 2Number of PCI Express x8 Slots: 4Interfaces/PortsTotal Number of USB Ports: 4Number of USB 2.0 Ports: 4VGA: YesOnboard InterfacesNumber of SATA Interfaces: 6Total Number of Onboard USB Ports: 4Physical CharacteristicsForm Factor: Extended ATXWidth: 12"Depth: 13"MiscellaneousEnvironmentally Friendly: YesEnvironmental Certification: RoHS
