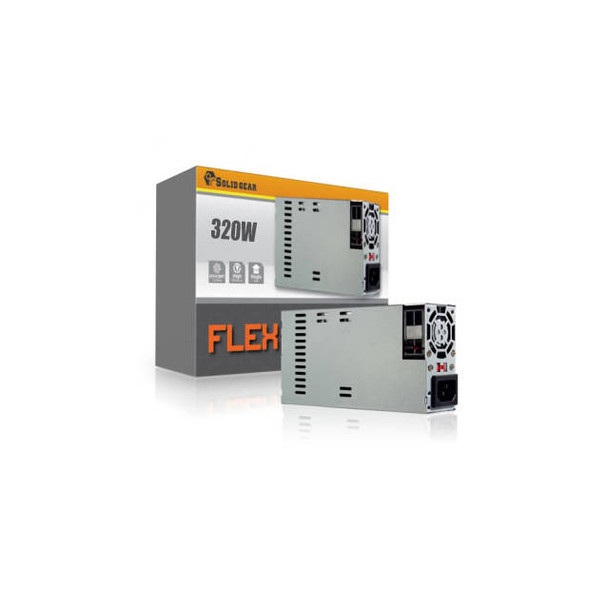

Solid Gear SDGR-FLEX320 320W Mini-ITX / FLEX ATX Power Supply

Specifications

• Mfr Part Number: SDGR-FLEX320
• Features:
  • Mini-ITX/FLEX ATX type
  • Supports Intel & AMD Socket
  • Low ripple and noise
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • Short Circuit protection
  • Thermal overload cut-off protection
  • Stained SECC Steel Material
  • 15" long cables
  • Energy efficiency
• Maximum Power: 320W
• Input:
  • Voltage: 100-240V
  • Current: 100A max cold start
  • Frequency Range: 47/63Hz

• Regulation:
  • Line: +/-1% typical
  • Load: +/- 5% typical
• Output Ripple: noise - 1%
• Fan: 1x 40mm Cooling Fan
• Output: +3.3V @ 11A, +5V @ 14A, +12V @ 17A, -12V @ 0.3A, -5V @ 0.1A, +5Vsb @ 2.0A
• Connectors: 1x 20+4pin Main Connector, 1x 4pin P4 12V Connector,åÊ2x 15pin SATA Connectors, 2x 4pin Molex Connectors, 1x 4pin Floppy Connector
• MTBF (Full Load): >20,000 Hours
• EnergystarStand by: < 1W
• Dimensions (WxDxH):åÊ3.250 xåÊ6.000 xåÊ1.625åÊinches
• Weight: 2.0 lbs
