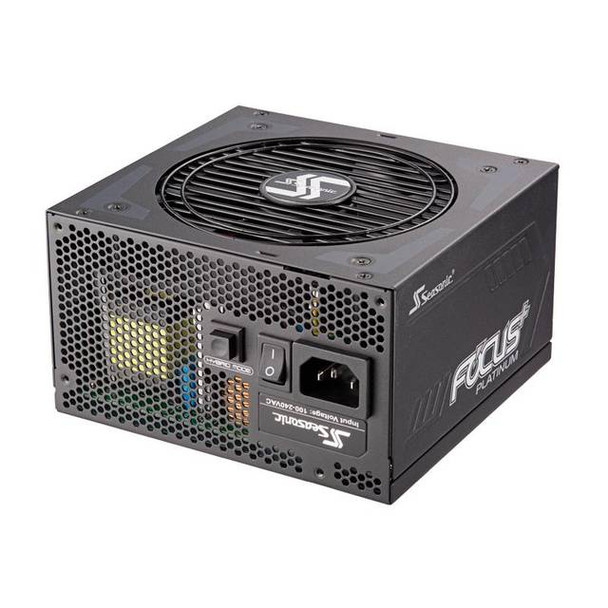

Seasonic SSR-550PX FOCUS 550W 80 PLUS Platinum ATX12V Power Supply

Specifications

• Mfr Part Number: SSR-550PX
• Features:
  • 80 PLUS Platinum
  • Compact Size
  • Fluid Dyanamic Fan Bearing
  • Hybrid Silent fan Control
  • Tight Voltage Regulation
  • Cable-free Connection Design
• Type: Intel ATX12V
• Total Power: 550 W
• Input:
  • Voltage: 100 - 240V
  • Current: 8 - 4 A
  • Frequency: 50 Hz - 60 Hz
• MTBF: 100,000 hours (@ 25 °C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 45A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20/24pin Main Connector, 1x 4/8pin CPU Connector, 2x 6/8pin PCI-Express Connectors, 6x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector

• Cooling System: 120mm Fluid Dynamic Bearing Fan w/ Hybrid Silent Fan Control
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, RCM
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
• RoHS Compliant
