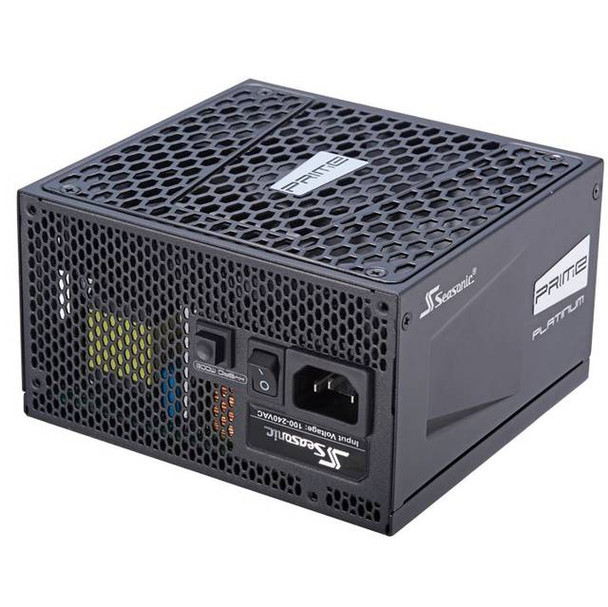

Seasonic SSR-550PD2 PRIME Ultra Platinum 550W 80 Plus Platinum ATX12V Power Supply

Specifications

• Mfr Part Number: SSR-550PD2
• Features:
  • 80 PLUS Platinum
  • Fluid Dynamic Fan Bearing
  • Premium Hybrid Fan Control
  • Power Supply Sound
  • Micro Tolerance Load Regulation
  • Cable-free Connection Design
  • Multi-GPU Setup
  • Gold Plated Connectors
  • 12 years warranty
• Type: Intel ATX12V
• Total Power: 550 W
• Input:
  • Voltage: 100 - 240V
  • Current: 8 - 4 A
  • Frequency: 50 Hz - 60 Hz
• MTBF: 150,000 hours (@ 25 °C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 45A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 24/20pin Main Power Connector, 1x 8/4pin CPU Connector, 2x 8/6pin PCI-Express Connectors, 6x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
• Cooling System: 135mm Fluid Dynamic Bearing Fan w/ Premium Hybrid Fan Control
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
