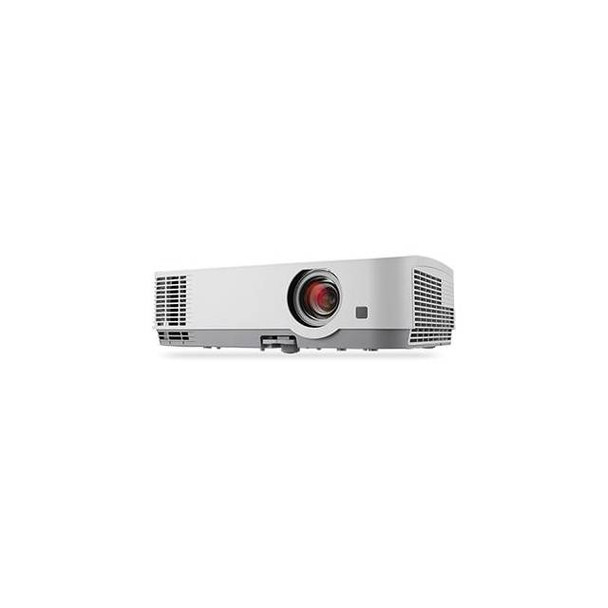

NEC NP-ME301X 3000 Lumens MLA XGA Projector

Specifications

• Mfr Part Number: NP-ME301X
• Optical:
  • Display Technology: MLA (0.63" LCD)
  • Light Output (Lumens): 3000 normal
  • Resolution:
    • Native: XGA 1024 x 768
    • Maximum: WUXGA 1920 x 1200
  • Contrast Ratio (up to): 12,000:1
  • Lamp Type: 240W AC
  • Lamp Life (up to): 4000 hours normal / 9000 hours eco
  • Screen Size (Diagonal): 30 ~ 300 inch / 0.76 ~ 7.62 m
  • Throw Ratio: 1.3 ~ 2.2:1
  • Projection Distance: 2.0 ~ 45.3 ft / 0.6 ~ 13.8 m
  • Projector Angle: 6.5 ~ 6.8° tele / 10.7 ~ 11.4° wide
  • Lens:
    • Zoom: 1.7
    • Focus: Manual
    • F-number, f-number: F= 1.7 ~ 2.1 mm, f= 17.5 ~ 29.0 mm
  • Keystone Correction: +/- 30° horizontal, +/- 30° vertical
• Signal Compatibility/Connectivity:
  • Synchronization Range:
    • Horizontal (Analog/Digital): Analog -15 ~ 100kHz, Digital ~ 15-153kHz
    • Vertical (Analog/Digital): Analog - 48 ~ 120Hz, Digital - 24 ~ 120Hz
  • Supported Video Standards: NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
  • SD/HD Video Signal Compatibility: Y/CB/Cr component (with optional adaptor ADP-CV1E) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
  • Macintosh Compatibility: Yes
  • Input/Output Terminals:
    • RGB1 (Analog): VGA 15-pin D-sub
    • RGB3 (Digital): HDMI w/ HDCP
    • RGB4 (Digital): HDMI w/ HDCP
    • RGB5 (Digital): USB A Type
    • Video 1: RCA
    • Audio 1: L/R RCA (shared by video sources)
    • Audio 2: 1/8 inch stereo
    • Monitor Out: VGA 15-pin D-sub
    • Audio Out: Yes (variable)
  • Audio: 20W speaker
  • External Control: RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
  • Sync Compatiblity: Separate Sync/ Composite Sync/ Sync on G
• Electrical:
  • Power Requirements: 100~240V AC, 50/60Hz
  • Input Current: 3.4A / 1.4A
  • Power Consumption (Normal/ ECO Mode/ Standby/ Standby Power Saving): 286W / 201W / 1.9W / 0.23W
• Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
• Fan Noise: 35 dB (normal) / 29 dB (eco)
• Regulations: UL (UL60950-1) FCC Part15 Class B
• Dimensions (WxDxH): 14.5 x 11.5 x 4.3 inch / 368.0 x 292.0 x 108.0 mm
• Weight: 6.4 lbs / 2.9 kg
