NEC NP-M283X 2800 Lumens DLP XGA Projector

Specifications

• Mfr Part Number: NP-M283X
• Optical:
  • Display Technology: DLP (0.55" DMD)
  • Resolution:
    • Native: XGA 1024 x 768
    • Maximum: WUXGA 1920 x 1200
  • Light Output (Lumens): 2800 Normal
  • Contrast Ratio (up to): 10,000:1
  • Lamp Type: 200W AC / 120W eco
  • Lamp Life (up to): 4500 hours (normal) / 10,000 hours (eco)
  • Screen Size (diagonal): 30.0 ~ 300.0 inch / 0.76 ~ 7.6 m
  • Throw Ratio: 1.5 - 2.55 : 1
  • Projection Distance: 3.0 ~ 52.4 ft / 0.90 ~ 15.97 m
  • Projector Angle: 10.5° ~ 17.6°
  • Lens:
    • Zoom: 1.7
    • Focus: Manual

    • F-number, f-number: F=2.4 ~ 3.1, f=17.09 ~ 29.05mm
  • Keystone Correction: +/- 25° horizontal, +/- 30° vertical
• Signal Compatiblity/Connectivity:
  • Synchronization Range:
    • Horizontal (Analog/Digital): 15 ~ 100 kHz
    • Vertical (Analog/Digital): 50 ~ 120 Hz
  • Supported Video Standards: NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
  • SD/HD Video Signal Compatibility: Y/CB/Cr component (with optional adaptor ADP-CV1E) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
  • Macintosh Compatibility: Yes
  • Input/Output Terminals:
    • RGB1(Analog): VGA 15-pin D-sub
    • RGB3(Digital): HDMI w/ HDCP

    • RGB4(Digital): HDMI w/ HDCP
    • RGB5(Digital): USB A Type
    • Video 1: RCA
    • Audio 1: L/R RCA (shared by video sources)
    • Audio 2: 1/8 inch stereo
    • Audio 3: Microphone
    • Monitor Out:  VGA 15-pin D-sub
    • Audio Out: Yes (variable)
  • Audio: 20W Speaker
  • External Control: RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
  • Sync Compatibility: Separate Sync/ Composite Sync/ Sync on G
• Electrical:
  • Power Requirements: 100 ~ 240V AC, 50/60 Hz
  • Input Current: 3.0A / 1.2A
  • Power Consumption (Normal/ ECO Mode/ Standby/ Standby Power Saving): 255W / 170W / 2.6W / 0.2W
• Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
• Fan Noise: 31 dB (normal) / 27 dB (eco)
• Regulations: UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B
• Dimensions (WxDxH): 14.5 x 11.5 x 4.3 inch / 368.0 x 292.0 x 108.0 mm
• Weight: 7.7 lbs / 3.5 kg

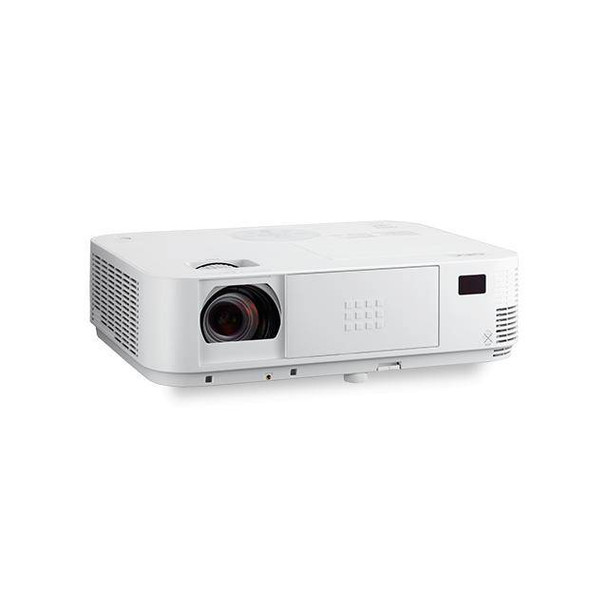

• Product images are for illustrative purposes only therefore the delivered product may vary from the one shown above.
