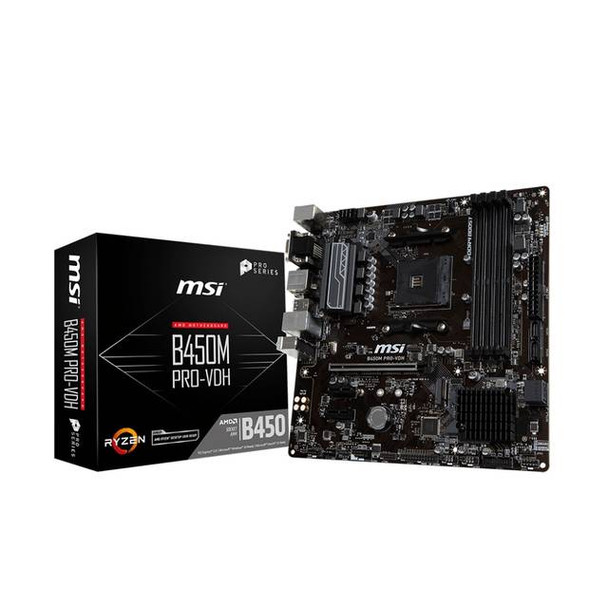

MSI B450M PRO-VDH Socket AM4/ AMD B450/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

SpecificationsMfr Part Number: B450M PRO-VDHCPU: Socket AM4Support AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics ProcessorsChipset: AMD B450Memory: 4x DDR4-2667/ 2400/ 2133/ 1866 MHz Slots, Dual Channel, ECC, Non-ECC, Max Capacity of 64GB (by JEDEC); 4x DDR4-3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz Slots, Dual Channel, ECC, Non-ECC, Max Capacity of 64GB (by A-XMP OC MODE)Slots: 1x PCI-Express 3.0 x16 Slot,  2x PCI-Express2.0 x1 SlotsStorage:SATA: 4x SATA3 Ports, Support RAID 0, 1, 10M.2: 1x M.2 Port (Key M), Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devicesAudio: Realtek ALC892 7.1-Channel High Definition Audio CODECLAN: Realtek 8111H Gigabit LAN ControllerPorts: 6x USB 3.1 Gen 1 Ports (4 Type-A rear, 2 via header), 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Combo Port, 1x VGA Port, 1x HDMI Port, 1x DVI-D Port, 1x RJ45 LAN Port, Audio I/O JacksPower Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power ConnectorForm Factor: MicroATX , 9.6 x 9.6 inch / 24.4 x 24.4 cm
