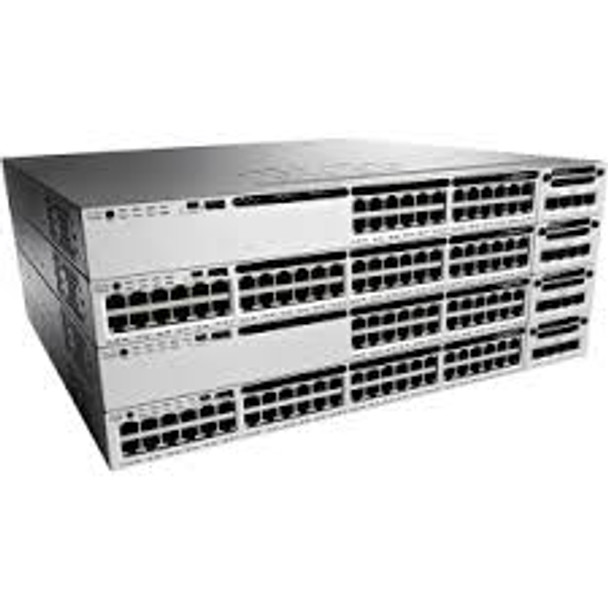

Cisco Catalyst WS-C3850-24S-E Switch Layer 3 - WS-C3850-24S-E

Main Specifications: model info: WS-C3850-24S-E enclosure type Rack-mountable - 1U Ports 24 x SFP ports Network management Interface ?ùÅ Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling?ùÅ Management console port: RJ-45-to-DB9 cable for PC connections Available PoE Power None Switching Capacity 92Gbps Maximum stacking number 9 Stack Bandwidth 480Gbps Forwarding Performance 68.4Mpps FNF entries 48,000 flows Maximum VLANs IDs 1,000 MAC Address Table Size 32K CPU Multicore CPU RAM 4 G?á Flash Memory 2 G General Number of AP per switch/stack 50 Number of wireless clients per switch/stack 2000 Total number of WLANs per switch 64 Wireless bandwidth per switch up to 20Gbps Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040 Expansion / Connectivity Console ports USB (Type-B), Ethernet (RJ-45) Expansion Slot(s) 1 network module slot and 1 power redundant slot Power supply PWR-C1-350WAC Power Device Power supply - redundant - plug-in module Power Redundancy optional Voltage range (Auto) 100V-240V Power Consumption of standalone(in Watts) 109.75 (Max) Miscellaneous Width 17.5 Inches (44.5 Cm) Depth 17.7 Inches (45.0 Cm) Height 1.75 Inches (4.45 Cm) Weight 15.48 Pounds (7.02Kg) Rack Mounting Kit optional MTBF in hours 315,840 Brief Overview 24 x SFP ports Rack-mountable - 1U RJ-45 100V-240V Cisco next generation Catalyst WS-C3850-24S-E is stackable enterprise level switch and integrated with 24 SFP ports in IP service feature set. WS-C3850-24S-E enables sophisticated layer2-4 switching capability by providing the optimal solution for access layer and aggregation layer. Cisco 3850 series combines both wired and wireless capability on a single platform. To utilize wireless controller functionality, wireless AP license is required: LIC-CTIOS-1A license for 1 access point. IP service feature set can only stack with other Catalyst 3850 Series IP service switches. Power stack capacity is supported by Cisco Stackpower technology to provide power redundancy among stacking members. Network uplink modules enhance the flexibility for customer to choose network uplink connectivity. Flexible Netflow intelligence feature monitors every single flow on both wired and wireless users.

• Product images are for illustrative purposes only therefore the delivered product may vary from the one shown above.
