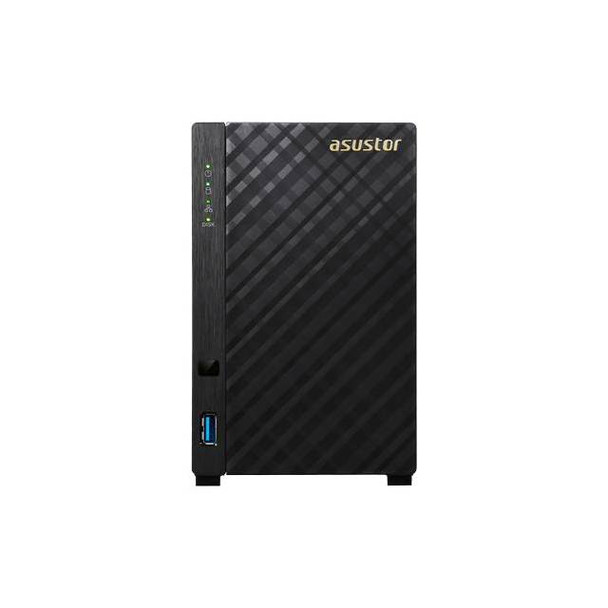

ASUSTOR AS3202T Intel Celeron 1.6GHz/ 2GB DDR3L/ GbE/ USB3.0/ 2-bay Desktop NAS

Specifications

• Mfr Part Number: AS3202T
• Hardware:
  • CPU: Intel Celeron Processor (1.6GHz, burst up to 2.24 GHz, Quad-Core)
  • Memory: 2GB DDR3L SODIMM (not expandable)​
  • HDD: 2x 3.5" SATA II / III HDD
  • Expansion: 3x USB 3.0 Ports
  • Network: 1x Gigabit Ethernet Port
  • Output: 1x HDMI Port
  • System Fan: 1x 70mm Fan
  • Infrared Receiver
  • Input Power Voltage: 100~240 V AC
  • Noise Level: 18.6 dB(A) (HDD idle)
  • Eco-Friendly Design:
    • System Automatically Enters Sleep Mode (Schedule S3)
    • Auto-Standby for Both Internal and External Disks
    • Auto Fan Control
    • LED Night Mode
    • Power Schedule - On, Off, Restart, and Sleep
• Software:
  • Operating System: ADM 2.5 Onwards, Supports Online Firmware Updates
  • Supported OS:
    • Windows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012
    • Mac OS X 10.6 Onwards
    • UNIX, Linux, and BSD
  • Supported Browsers: Internet Explorer Onwards, FireFox, Chrome, Safari
  • Network Protocols: CIFS/SMB, SMB 2.0/3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI, HTTP, HTTPS, Proxy, SNMP, Syslog
  • File System:
    • Internal Disk: EXT4
    • External Disk: FAT32, NTFS, EXT3, EXT4, HFS+
  • Storage Management:
    • Support Multiple Volumes with Spare Disks
    • Volume Type - Single disk, JBOD, RAID 0, RAID 1
    • Support for Online RAID Level Migration
  • iSCSI Read/Write (5GB file, 1GbE x 1):
    • Maximum Targets - 256
    • Maximum LUNs - 256
    • Maximum Snapshot Versions of a Single LUN - 256
    • Target Masking
    • LUN Mapping
    • ISO File Mounting
    • Supports MPIO
    • Persistent (SCSI-3) Reservations
  • Disk Management:
    • Scheduled Bad Block Scans
    • Scheduled S.M.A.R.T Scans
  • Network:
    • TCP/IP (IPv4 & IPv6)
    • Jumbo Frame (MTU)
    • VLAN
    • Cloud Connect
    • Wireless Network
    • DDNS and EZ-Router
    • Supports Wake-on-LAN (WOL)
  • Backup Solutions:
    • Rsync (Remote Sync) Backup
    • Cloud Backup
    • FTP Backup
    • External Backup
    • One Touch Backup
  • System Administration:
    • Log Type - System Log, Connection Log, File Access Log
    • Real-time Online User Monitor
    • Real-time System Monitor
    • User Quota
    • Virtual Drive (ISO Mounting, Maximum 16)
    • UPS Support
  • Access Control:
    • Maximum Number of Users: 4096
    • Maximum Number of Groups: 512
    • Maximum Number of Shared Folders: 512
    • Maximum Number of Concurrent Connections: 512
    • Supports Windows Active Directory
  • Security:
    • AES 256-Bit Folder Encryption
    • Firewall: Prevent Unauthorized Access
    • Alert Notifications: E-mail, SMS
    • Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
    • Built-in Hardware Encryption Engine: AS70/61/62/31/32/10 Series
• Featured Apps:
  • File Explorer:
    • Web-based File Management
    • ISO File Mounting
    • Share Links
    • Task Monitor
    • Browse Files on Local PC
    • Thumbnail Previews
    • Data Access via External Optical Drive
    • Supports video playback
  • Surveillance Center:
    • Up to 24channels in 720p on single live view display (4 Free Channels)
    • On-screen camera controls including camera PTZ, manual recordings, take snapshots,configure camera settings and open Maps
    • Up to 4 channels of synchronous and non-synchronous playback with audio
    • Intelligent video analytics including motion detection and foreign object detection
    • Supported Browsers: Windows Internet Explorer, Firefox, Mac Safari, Mac Firefox
    • Event notification supports SMS, E-mail, and mobile push notification
    • Automated event action rules
    • Role-based access control
    • RTSP streaming server (video and audio)
    • AiSecure mobile app for iOS and Android with Push notification
    • ONVIF 2.4, Profile S certified
    • Two different camera license packages are offered: single channel and 4 channels
    • Maximum IP Cam (4 Free Licenses; Additional Licenses to be Purchased)
  • UPnP Media Server:
    • Supports PS3 and other Digital Media Player Capable Devices
    • Supports On-The-Fly Transcoding for Most RAW Images and Audio (OGG, FLAC)
    • Supported Image Formats - BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)
    • Supported Audio Formats - 3GP, AAC, AC3, AIFC, AIFF, AMR, APE, AU, AWB, FLAC1, M4A, M4R, MP2, MP3, OGG Vorbis1, PCM, WAV, WMA
    • Supported Video Formats - 3GP, 3G2, ASF, AVI, DAT, FLV, ISO, M2T, M2V, M2TS, M4V, MKV, MPv4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, RMVB, VDR, MPE
  • iTunes Server:
    • For iTunes on Mac & Windows
    • Supports AirPlay
    • Supports iOS Remote Pairing
    • Supported Audio Formats - AIF, M4A (AAC & Apple Loseless), M4P, M4R, MP3, WAV
    • Supported Video Formats - M4V, MOV, MP4
    • Supported Playlist Formats - M3U, WPL
  • Download Center:
    • Supports BT (Torrent & Magnet Link), HTTP and FTP Downloads
    • Torrent Search
    • Choose Files Before a BT Task Starts
    • Customizable Download Schedule
    • Bandwidth Control
    • RSS Subscription and Automatic Downloading (Broadcatching)
    • ASUSTOR Download Assistant for Windows & Mac
    • AiDownload for iOS & Android with Push Notification
    • Smart Download Function
• Power Consumption: 16.40W (Operation), 7.75W (Disk Hibernation), 0.79W (Sleep Mode)
• Certifications: FCC, CE, VCCI, BSMI, C-TICK
• Dimensions (WxDxH): 102.0 x 218.0 x 165.0 mm
• Weight: 2.58 lbs / 1.17 kg
