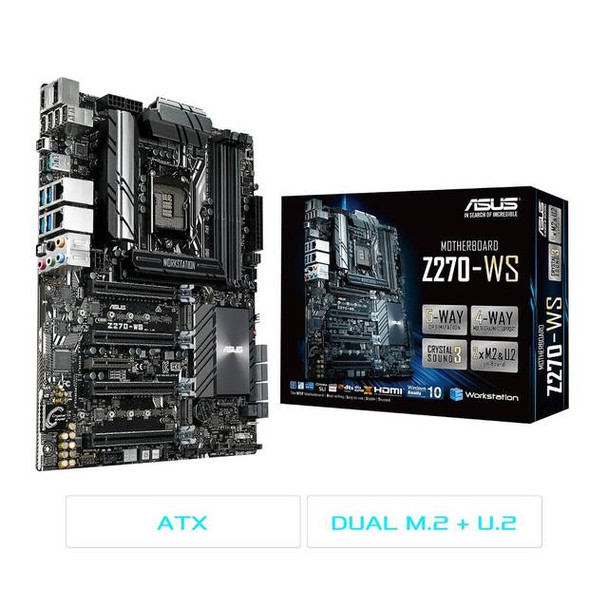

Asus Z270-WS LGA1151/ Intel Z270/ DDR4/ 4-Way CrossFireX & 4-Way SLI/ SATA3&USB3.1/ M.2&U.2/ A&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: Z270-WS
• CPU: LGA1151
  • Supports the 7th/ 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
  • Supports Intel 14nm CPU
  • Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel Z270
• Memory: 4x DDR4-3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666(OC)/ 2400(OC)/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 4x PCI-Express 3.0/2.0 x16 Slots (Single at x16, dual at x16/x16, triple at x16/x8/x8, quad at x8/x8/x8/x8), 1x PCI-Express x4 Slot
• Multi-Graphics: Supports AMD Quad-GPU, 4-Way CrossFireX and NVIDIA Quad-GPU, 4-Way SLI Technology
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
  • M.2: 2x M.2 x4 Ports (w/ M Key), one supports type 2242/ 2260/ 2280/ 22110 & PCI-Express 3.0 x4 mode, one supports type 2242/ 2260/ 2280/ 22110 & SATA & PCI-Express mode
  • U.2: 2x U.2 Ports
• Audio: Realtek ALC S1220A 8-Channel High Definition Audio CODEC
• LAN: Intel I210-AT and Intel I219-LM Gigabit Ethernet Controllers
• Ports: 3x USB 3.1 Ports (1 Type-A rear, 1 Type-C rear, 1 front), 6x USB 3.0/2.0 Ports (4 rear, 2 at mid-board), 6x USB 2.0/1.1 Ports (4 rear, 2 at mid-board), 1x DisplayPort, 1x HDMI Port, 2x RJ45 LAN Ports, 1x Optical S/PDIF out, Audio I/O Jacks
• Power Connector: 2x 8-pin EATX 12V Power Connectors, 1x 6-pin EATX 12 V_1 Power Connecto, 1x 24-pin EATX Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
