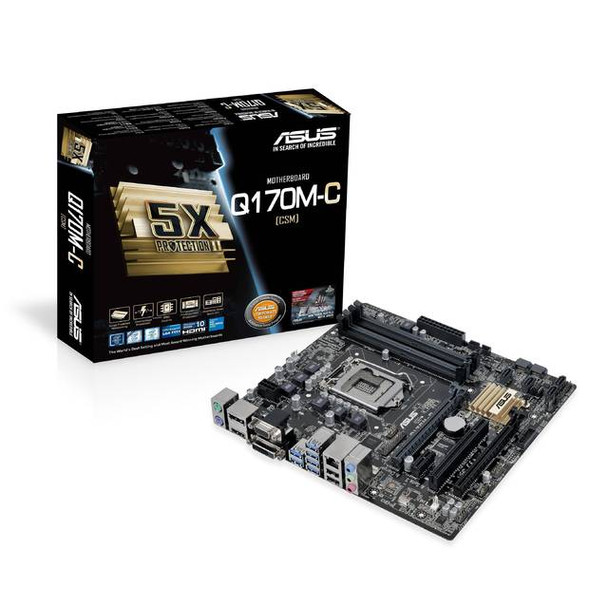

Asus Q170M-C/CSM LGA1151/ Intel Q170/ DDR4/ SATA3&USB3.0/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: Q170M-C/CSM
• CPU: LGA1151
  • Supports the 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
  • Supports 14nm CPU
  • Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel Q170 Express
• Memory: 4x DDR4-2133 DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 2x PCI-Express 3.0/2.0 x16 Slot (one max. at x4 mode), 1x PCI-Express 3.0/2.0 x1 Slot, 1x PCI Slot
• SATA: 6x SATA3 Ports
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• LAN: Intel I219LM Gigabit Ethernet Controller
• Ports: 10x USB 3.0 Ports (6 rear, 4 at mid-board), 4x USB 2.0 Ports (2 rear, 2 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: MicroATX, 9.6 x 8.9 inch / 24.4 x 22.6 cm

• Product images are for illustrative purposes only therefore the delivered product may vary from the one shown above.
• In some cases, packaging may differ from OEM/original retail box. For bulk orders that are packaged together, product manuals or CDs may not always be available for each item.
• The shipping cost added at the checkout is a general estimate which is subject to change depending on size/weight/quantity of ordered goods.
• Orders that contain end of life (EOL) products that are no longer in production may be replaced by a compatible product with the same FRU number offering same functionality.
• Refurbished printers may not have full ink cartridges or laser toners.
• Once an order is processed at our warehouse, it cannot be cancelled. A returned order will likely incur a restocking fee. See RMA page for details about restocking fees.
• Please note if you are concerned about any of the above conditions or have any questions, we highly recommend that you contact us on sales@ithardwaregroup.co.uk or call 020 37908599 before placing an order
