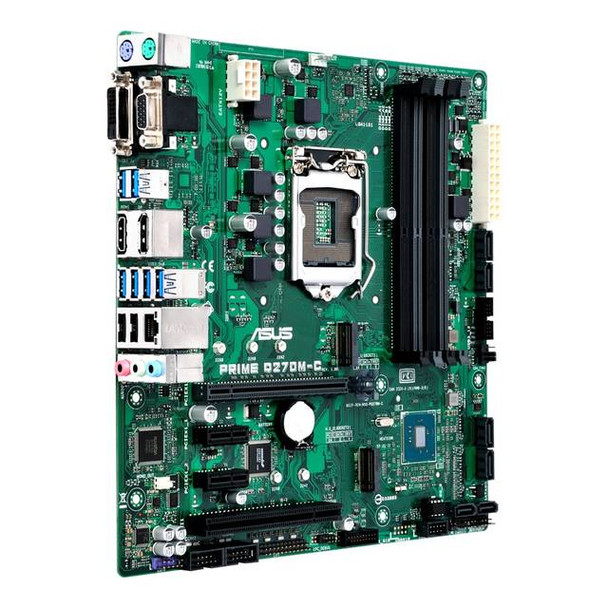

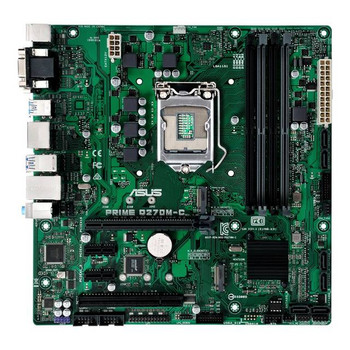

Asus PRIME Q270M-C/CSM LGA1151/ Intel Q270/ DDR4/ SATA3&USB3.0/ M.2/ A&GbE/ MicroATX Motherboard

SpecificationsMfr Part Number: PRIME Q270M-C/CSMCPU: LGA1151Supports 7th/ 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron ProcessorsSupports 14nm CPUSupports Intel Turbo Boost 2.0 TechnologyChipset: Intel Q270Memory: 4x DDR4-2400/ 2133 MHz DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 64GBSlots: 1x PCI Express 3.0/2.0 x16 Slot, 2x PCI Express 3.0/2.0 x1 Slots, 1x PCI SlotStorage:SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10M.2: 2x M.2 Ports, one supports type 2242/ 2260/ 2280 & SATA & PCI-Express x4 mode, one supports type 2242/ 2260/ 2280 & PCI-Express 2.0 x4 modeAudio: Realtek ALC887 8-Channel High Definition Audio CODECLAN: Intel I219LM Gigabit Ethernet ControllerPorts: 10x USB 3.0/2.0 Ports (6 rear, 4 at mid-board), 6x USB 2.0/1.1 Ports (2 rear, 4 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port, Audio I/O JacksPower Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power ConnectorForm Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
