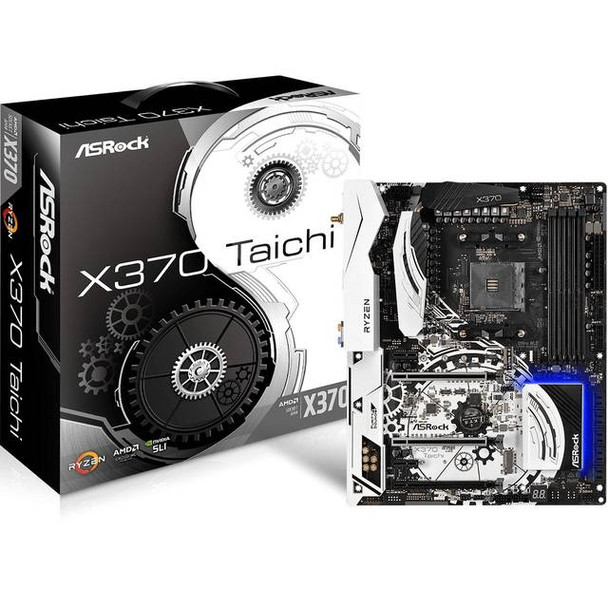

ASRock X370 TAICHI Socket AM4/ AMD X370/ DDR4/ Quad CrossFireX & Quad SLI/ SATA3&USB3.1/ M.2/ WiFi/ A&GbE/ ATX Motherboard

SpecificationsMfr Part Number: X370 TAICHICPU: Socket AM4Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge)IR Digital PWM16 Power Phase designSupports 300W EX OCSupports ASRock Hyper BCLK Engine IIChipset: AMD Promontory X370Memory: 4x DDR4-2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GBSlots: 2x PCI-Express 3.0 x16 Slots (one runs at x8),1x PCI Express 2.0 x16 Slot (runs at x4), 2x PCI-Express 2.0 x1 SlotsMulti-Graphics: Supports AMD Quad CrossFireX, CrossFireX and NVIDIA Quad SLI, SLI TechnologyStorage:SATA: 10x SATA3 Ports, eight Support RAID 0, 1, 10M.2: 1x Ultra M.2 Port (M Key) supports type 2242/ 2260/ 2280 M.2 SATA3 and M.2 PCI-Express 3.0 x4 (32 Gb/s); 1x M.2 Port (M Key) supports type 2230/ 2242/ 2260/ 2280 M.2 PCI-Express 2.0 x4 (20 Gb/s)Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODECLAN: Intel I211AT Gigabit Ethernet Controller; IEEE 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2/ 3.0 + High speed class IIPorts: 2x USB 3.1 Ports (1 Type-A rear, 1 Type-C rear), 10x USB 3.0 Ports (6 rear, 4 via headers), 4x USB 2.0 Ports (4 via headers), 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x Optical SPDIF Out Port, 1x RJ45 LAN Port, Audio I/O JacksPower Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power ConnectorForm Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
