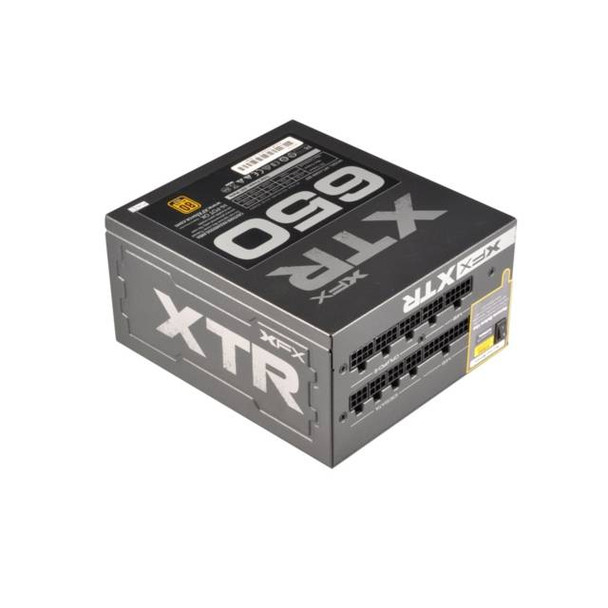

XFX XTR Series P1650BBEFX 650W 80 PLUS Gold EPS12V Power Supply w/ Active PFC

Specifications

• Mfr Part Number: P1650BBEFX
• Features:
  • EasyRail Plus Technology allowing plenty of wattage headroom to handle your devices
  • Hybrid Fan Control allowing the power supply to operate silenty until it reaches 20% load or 25°C
  • Ultra Quiet Fan Design
  • Ultra Voltage Regulation Design
  • Haswell Ready
  • AMD Radeon CrossFire Ready
  • NVIDIA GeForce SLI Ready
  • Multiple PCI-E 6-Pin and 6+2Pin connectors
  • True Wattage guarantee
  • 80 Plus Gold certifying 90% power efficiency
  • Extreme heat tested capacitors
• Type: ATX12V & EPS12V
• Maximum Power: 650W
• Input:
  • Voltage: 100 - 240 V AC
  • Current: 4.5A - 9.5 A
  • Frequency Range: 50 - 60 Hz
• Output: +3.3V @ 20A, +5V @ 20A, +5VSB @ 2.5A, +12V @ 54A, -12V @ 0.3A
• Connectors: 1x 20+4pin Motherboard Connector, 1x 4+4pin ATX12V/EPS12V Connector, 1x 8pin EPS12V GPU Connector, 4x 6+2pin PCI-Express Connectors, 10x SATA Connectors, 6x Peripheral Connectors, 1x Floppy connectors
• Cooling: 135mm Fluid dynamic Fan
• Active PFC: Yes
• Efficiency: Up to 90%
• Energy-Efficiency: 80 PLUS Gold Certified
• Protection: Over Current, Over Power, Over Temperature, Over Voltage, Short Circuit, Under Voltage
• Dimensions(WxDxH): 12.55 x 6.42 x 8.26 inch / 31.9 x 16.3 x 21.0 cm
• Weight: 7.05 lb / 3.2 kg
