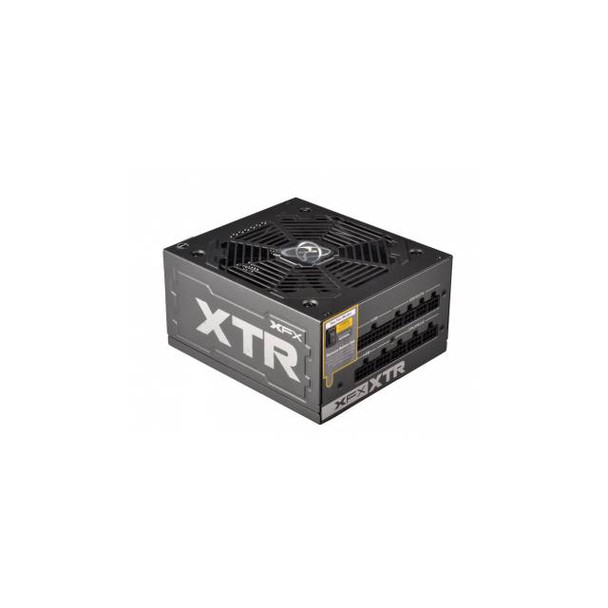

XFX XTR Series P1550BBEFX 550W 80 PLUS Gold EPS12V Power Supply w/ Active PFC

Specifications

• Mfr Part Number: P1550BBEFX
• Features:
  • EasyRail Plus Technology allowing plenty of wattage headroom to handle your devices
  • Hybrid Fan Control allowing the power supply to operate silenty until it reaches 20% load or 25å¡C
  • Ultra Quiet Fan Design
  • Ultra Voltage Regulation Design
  • Haswell Ready
  • AMD Radeon CrossFire Ready
  • NVIDIA GeForce SLI Ready
  • Multiple PCI-E 6-Pin and 6+2Pin connectors
  • True Wattage guarantee
  • 80 Plus Gold certifying 90% power efficiency
  • Extreme heat tested capacitors
• Type: ATX12V / EPS12V
• Maximum Power: 550W
• Input:
  • Voltage: 100 - 240 V AC
  • Current: 4 - 8 A
  • Frequency Range: 50 - 60 Hz
• Output: +3.3V@20A, +5V@20A, +5VSB@2.5A, +12V@ 45A,  -12V @ 0.3A
• Connectors: 1x 20+4pin Motherboard Connector, 1x 4+4pin ATX/EPS Connector, 1x 8pin EPS Connector, 2x 6+2pin PCI-Express Connectors, 8x SATA Connectors, 6x Peripheral Connectors, 1x Floppy connector
• Cooling: 135mm Fluid Dynamic Fan
• Active PFC: Yes
• Efficiency: Up to 90%
• Energy-Efficiency: 80 PLUS Gold Certified
• Protection: Over Current, Over Power, Over Temperature, Over Voltage, Short Circuit, Under Voltage
• Dimensions: 12.55 x 8.26 x 6.42 inch / 31.9 x 21.0 x 16.3 cm
• Weight: 6.08 lb / 2.76 kg
