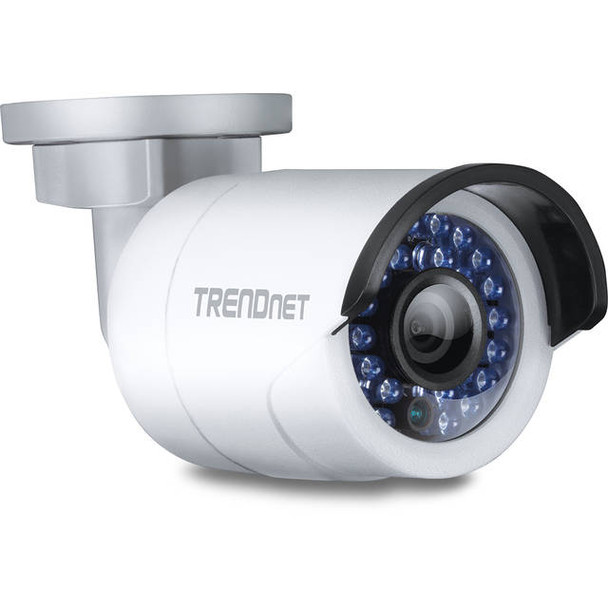

TRENDnet TV-IP310PI Outdoor 3MP Full HD PoE Day/Night Network Camera

Specifications

• Mfr Part Number: TV-IP310PI
• Lens:
  • Focal Length: 4 mm, F1.2
  • Focal Depth: 20 cm+
  • Board Lens
  • Sensor: 1/3" CMOS
  • Zoom: User-Defined Digital Zoom Window
• View Angle: Horizontal - 70°, Vertical - 52°, Diagonal - 89°
• Minimum Illumination:
  • IR off: 0.07 lux
  • IR on: 0 lux
  • 30 meter IR illumination distance
  • Smart IR
• Video Resolution:
  • H.264: 2048 x 1536 up to 15 fps (1920 x 1080 up to 30 fps)
  • MJPEG: 704 x 480 up to 30 fps
• Hardware Standard:
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
• Device Interface:
  • 10/100 Mbps PoE Port
  • Power port (for not PoE installations)
  • Grounding point
  • Integrated articulated mounting base
  • Reset button
• Network Protocol:
  • IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2
  • DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
  • NFS, SAMBA
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP, RTCP, SSL
• Managment Interface:
  • Multi-language Support: English, French, German, Russian, and Spanish
  • IP address Filter
  • QoS Traffic Prioritization
  • Time, date, and text overlay
  • Image Settings: brightness, contrast, saturation, hue, sharpness, smart IR, exposure time (1/3 – 1/100,000), scan rate, mirror, flip, D-WDR, back light compensation, white balance, digital noise reduction
  • D-WDR Enhances Video Quality in High Contrast Daytime Lighting
  • Digital Noise Reduction Enhances Night Vision Quality
  • Recording: to computer, NAS, CIFS/SAMBA share, or through software
  • Scheduled Recording: continuous and motion detection
  • Motion Detection Fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
  • Privacy Masks: define custom privacy mask areas
  • Tamper Proof Function: email notification if the viewing field darkens suddenly
  • Video Playback Interface: playback recorded video from remote storage
  • Alert Messages: storage full, storage error, and illegal login
  • Snapshot: real time snapshot, motion detection with schedule, tamper-proof with schedule
  • Supported Dynamic DNS Services: Dyn.com, NO-IP.com, HiDDNS, and IPServer
  • Management Setting: maximum 32 user accounts
  • Supports Remote Management
  • Compatibility: Internet Explorer 9.0 or higher, Firefox 13.0 or higher, Safari 4.0 or higher, Chrome 24.0 or higher
• TRENDnetVIEW Pro Software:
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility - Windows 10/ 8.1/ 8/ 7/ Vista/ XP, Windows Server 2003/2008
• TRENDnetVIEW App:
  • Free Apple and Androi apps
  • View your camera on your mobile device
  • Take snapshots
  • zoom
• Power:
  • Input: PoE (802.3af)
  • Consumption: 5 W (max)
• Optional Power Supply (Sold Separately):
  • Output: 12V DC @ 1A
  • 5.5 mm Barrel Connector
  • TRENDnet power adapter, model 12VDC1000, sold separately
• Certifications: CE, FCC, UL 60950
• Compliance: REACH, RoHS, WEEE
• Dimensions: 2.4 x 3.0 x 5.4 inch / 60.0 x 77.0 x 138.0 mm; Weather Rating - IP66
• Weight: 13.2 oz / 375.0 g
• Package Contents:
  • TV-IP310PI
  • CD-ROM (Utility Software & User’s Guide)
  • Multi-Language Quick Installation Guide
  • Camera mounting hardware
  • (Optional power supply sold separately)
