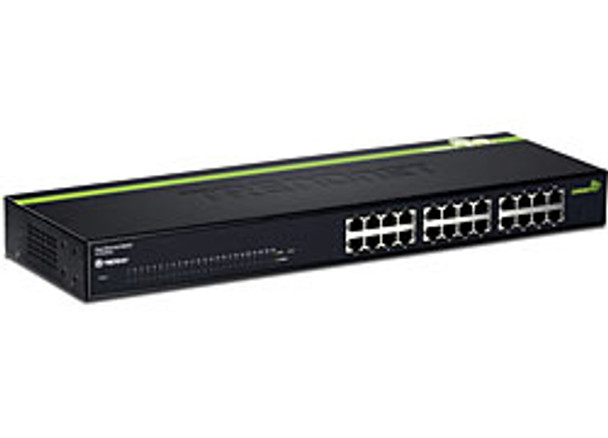

Trendnet 24-Port 10/100Mbps GREENnet Switch Unmanaged network switch
Brand: TRENDnet
- Part Number #
- TE100-S24G
- Availability:
- In Stock
Description
Management features | |
---|---|
Switch type | Unmanaged network switch |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Copper ethernet cabling technology | 100Base-TX,10Base-T |
Networking | |
Networking standards | IEEE 802.3u,IEEE 802.3x |
Full duplex | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
Data transmission | |
MAC address table | 8000 entries |
Supported data transfer rates | Ethernet: 10Mbps/20Mbps; Fast Ethernet: 100Mbps/200Mbps; |
Switching capacity | 4.8 Gbit/s |
Store-and-forward | Yes |
Maximum data transfer rate | 2 Gbit/s |
Design | |
Stackable | Yes |
Certification | CE, FCC |
Performance | |
Stackable | Yes |
Power | |
Input voltage | 100 - 240 |
Input current | 0.4 |
Technical details | |
Stackable | Yes |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Certificates | |
Certification | CE, FCC |
Operational conditions | |
Storage temperature (T-T) | -10 - 70 Ìâå¡C |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 40 Ìâå¡C |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Weight | 4.1 lbs (1.86 kg) |
Other features | |
Dimensions (WxDxH) | 17.3 x 5.51 x 1.73" (440 x 140 x 44 mm) |
Connectivity technology | Wired |
Power supply | 6.5 W |
Power requirements | 100 - 240VAC, 50~60Hz, 0.4A |
Input voltage | 100 - 240 |
Input frequency | 50/60 |
Connectivity LEDs | Link/ACT, 100Mbps |
