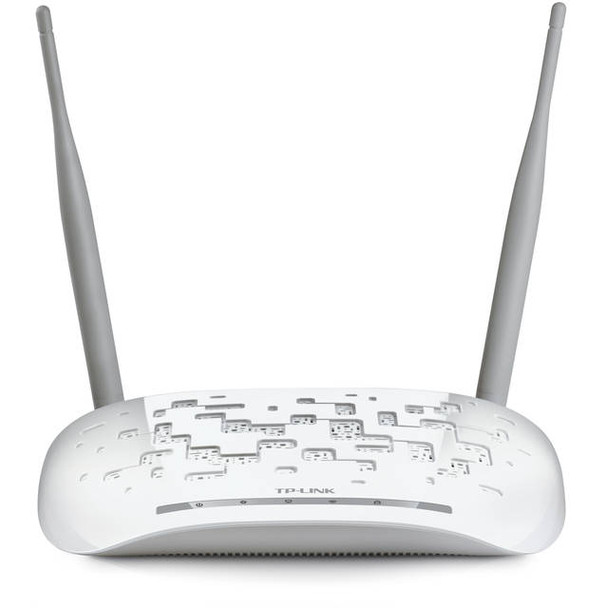

TP-Link TL-WA801ND 300Mbps Wireless N Access Point w/ 2x 5dBi Antennas

Specifications

• Mfr Part Number: TL-WA801ND

• Features:
  • Wireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and voice over Internet

  • MIMO technology provides robust high-bandwidth wireless Tx/Rx capability at further range

  • CCA improves wireless performance while automatically avoiding channel conflict

  • Supports multiple operating modes (Access Point, Client, Universal/WDS Repeater, Point to Point, Point to Multi-point)

  • Easily setup a WPA encrypted secure connection at a push of the QSS button

  • Supports Wi-Fi Multimedia (WMM) assures the quality of VoIP and multimedia streaming

  • Supports up to 30 meters(100 feet)of Power over Ethernet capability for flexible performance

  • Up to 4 SSIDs and VLAN support, it allows networks administrator to segregate different services or applications to different designated users

  • WPA/WPA2 encryptions provide your network with active defense against security threats

  • Backward compatible with 802.11b/g products

  • External detachable antennas allow for better alignment and stronger antenna upgrades

  • Wall mounted available, also can be placed horizontally on a table or desk

• Hardware Features:
  • Interface: 1x 10/100 Ethernet RJ45 Port (Supports Passive PoE)

  • Button: Power On/Off, WPS, Reset

  • External Power Supply: 9VDC / 0.85A

  • Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Antenna: 2x 5dBi Detachable Omni Directional (RP-SMA) Antennas

  • Dimensions (WxDxH ): 7.1 x 4.9 x 1.4 inch / 181.0 x 125.0 x 36.0 mm

• Wireless Features:
  • Signal Rates:
    • 802.11n: Up to 300Mbps (dynamic)

    • 802.11g: Up to 54Mbps (dynamic)
    • 802.11b: Up to 11Mbps (dynamic)

  • Frequency: 2.4~2.4835GHz
  • EIRP: <20dBm
  • Receiver Sensitivity:
    • 270M: -68dBm@10% PER

    • 130M: -68dBm@10% PER

    • 108M: -68dBm@10% PER
    • 54M: -68dBm@10% PER
    • 11M: -85dBm@8% PER

    • 6M: -88dBm@10% PER

    • 1M: -90dBm@8% PER

  • Wireless Modes: AP Mode, Multi-SSID Mode, Client Mode, Repeater Mode (WDS/Universal), Bridge with AP Mode

  • Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, MAC Address Filter

  • Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

  • Quality of Service: WMM

  • Management: SNMP

  • Advanced Functions: Up to 30 meters Passive PoE is supported

• Others:
  • Certifications: CE, FCC, RoHS

  • Package Contents: Wireless Access Point TL-WA801ND, 2x Detachable Omni directional antennas, Power supply unit, Passive PoE Power Injector, Resource CD, Quick Installation Guide

  • System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
  • Environment:
    • Operating Temperature: 0^oC~40^oC
    • Storage Temperature: -40^oC~70^oC

    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing
