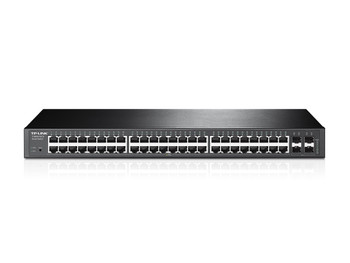

TP-LINK T2600G-52TS (TL-SG3452) Managed network switch L2+ Gigabit Ethernet (10/100/1000) 1U Black
Brand: TP-Link
- Part Number #
- T2600G-52TS
- Availability:
- In Stock
Description
Management features | |
---|---|
ARP inspection | Yes |
Switch type | Managed network switch |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Multicast support | Yes |
Switch layer | L2+ |
Ports & interfaces | |
SFP module slots quantity | 4 |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
SFP/SFP+ slots quantity | 4 |
Console port | RJ-45 |
Networking | |
Cable types supported | Cat5,Cat5e |
Protocol-based VLAN | Yes |
Private VLAN | Yes |
Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3ba,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
VLAN support | Yes |
Spanning tree protocol | Yes |
Rate limiting | Yes |
Port mirroring | Yes |
Link aggregation | Yes |
IGMP snooping | Yes |
DHCP server | Yes |
Broadcast storm control | Yes |
Auto MDI/MDI-X | Yes |
Data transmission | |
Packet forwarding rate (10 Mbps) | 77400000 pps |
Jumbo frames | 9216 |
MAC address table | 16 entries |
Switching capacity | 104 Gbit/s |
Number of queues | 8 |
Security | |
IP-MAC-Port binding | Yes |
BPDU filtering/protection | Yes |
Static port security | Yes |
SSH/SSL support | Yes |
Security algorithms | 802.1x RADIUS |
MAC address filtering | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
Design | |
Form factor | 1U |
Colour of product | Black |
Rack mounting | Yes |
Performance | |
Maximum cable length | 39.4" (1 m) |
Firmware upgradeable | Yes |
Auto-negotiation | Yes |
Power | |
Power consumption (max) | 33.52 W |
Power supply included | Yes |
AC input voltage | 100-220 |
AC input frequency | 50/60 |
Technical details | |
Form factor | 1U |
Colour of product | Black |
Firmware upgradeable | Yes |
Rack mounting | Yes |
Operational conditions | |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Width | 17.3" (440 mm) |
Depth | 8.66" (220 mm) |
Height | 1.73" (44 mm) |
Weight | 9.92 lbs (4.5 kg) |
Packaging data | |
Mounting brackets included | Yes |
Rubber feet | Yes |
User guide | Yes |
Manual | Yes |
Cables included | AC |
Packaging content | |
Mounting brackets included | Yes |
Rubber feet | Yes |
User guide | Yes |
Manual | Yes |
Cables included | AC |
