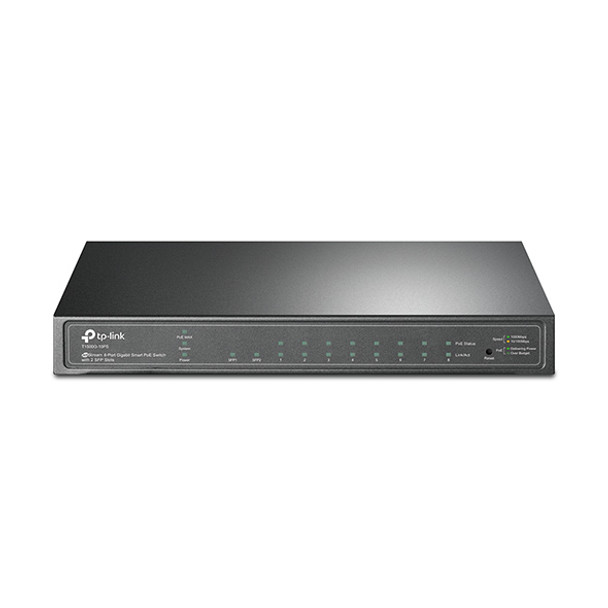

TP-LINK T1500G-10PS Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: TP-Link
- Part Number #
- T1500G-10PS
- Availability:
- In Stock
Description
Management features | |
---|---|
ARP inspection | Yes |
Switch type | Managed |
Multicast support | Yes |
Switch layer | L2/L4 |
Ports & interfaces | |
SFP module slots quantity | 2 |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Networking | |
Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
VLAN support | Yes |
Spanning tree protocol | Yes |
Port mirroring | Yes |
IGMP snooping | Yes |
Flow control support | Yes |
Broadcast storm control | Yes |
Auto MDI/MDI-X | Yes |
10G support | No |
Data transmission | |
Jumbo frames | 9000 |
MAC address table | 8000 entries |
Switching capacity | 20 Gbit/s |
Jumbo frames support | Yes |
Security | |
IP-MAC-Port binding | Yes |
BPDU filtering/protection | Yes |
Static port security | Yes |
SSH/SSL support | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
Design | |
Colour of product | Black |
Certification | CE, FCC, RoHS |
Performance | |
Firmware upgradeable | Yes |
Auto-negotiation | Yes |
Power | |
Output voltage | 48 V |
Output current | 1.25 A |
Power supply included | Yes |
AC input voltage | 100 - 240 |
AC input frequency | 50/60 |
Power consumption (typical) | 53 W |
Technical details | |
Colour of product | Black |
Firmware upgradeable | Yes |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Yes |
Certificates | |
Certification | CE, FCC, RoHS |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Width | 8.23" (209 mm) |
Depth | 4.96" (126 mm) |
Height | 1.02" (26 mm) |
Packaging data | |
AC adapter included | Yes |
Rubber feet | Yes |
Quick start guide | Yes |
Packaging content | |
AC adapter included | Yes |
Rubber feet | Yes |
Quick start guide | Yes |
