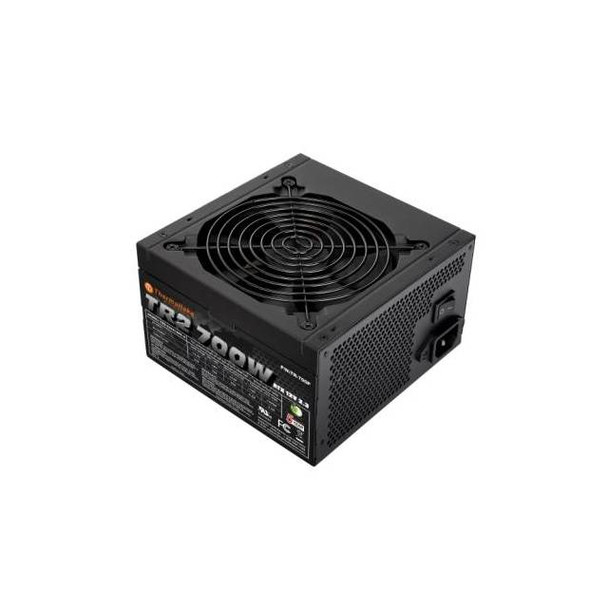

Thermaltake TR-700 700W ATX12V v2.3 & EPS12V 80 Plus Bronze Power Supply (Core i7 & Core i5 Ready)

Specifications

• Mfr Part Number: TR-700
• Features:
  • 80 Plus Bronze
  • Support the latest ATX 12V V2.3 & EPS 12V standards
  • High current & single +12V rail provides superior performance
  • Ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level
  • Active PFC with Universal AC input
  • Supports multiple core high-end graphic cards & CPU (NVIDIA SLI & ATI CrossFire Ready)
  • Heavy-duty protection circuitry  of Over Current, Over Voltage, Over Power and Short-Circuit protections
• Maximum Power: 700 Watts
• Input:
  • Voltage: 100 VAC ~ 240 VAC
  • Current: 10A
  • Frequency Range: 47 ~ 63Hz
• Form Factor: Intel ATX 12V 2.3
• Efficiency: Up to 75%
• Hold-up Time: 16 ms (min) @ 80% of full load at 115Vac/ 230Vac input
• Power Good Signal: 100 ~ 500 ms
• Power Factor Correction: Active PFC
• Fan: 120mm Fan with RPM Control Management
• MTBF: 100,000 Hours Minimum
• Output: +3.3V @ 24A; +5V @ 24A; +12V @ 52A; -12V @ 0.5A; +5VSB @ 3A
• Connectors: 1x 20+4pin Main Connector, 1x 4+4pin ATX 12V Connector, 4x 6+2pin PCI-Express Connectors, 8x SATA Connectors, 5x 4pin Peripheral Connectors
• Safety/EMI: UL, CUL, FCC
• Color: Black
• Dimensions (WxLxH): 5.9 x 5.5 x 3.4 inch / 150.0 x 140.0 x 86.0 mm
