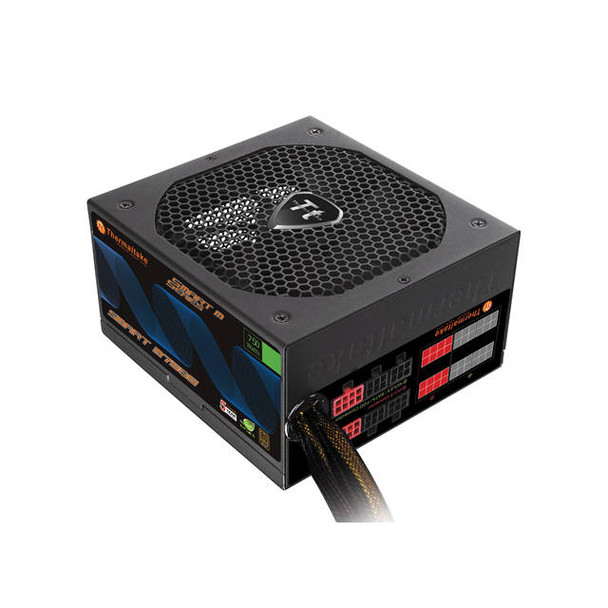

Thermaltake SP-750M Smart M Series 750W 80 Plus Bronze ATX12V v2.3 & EPS12V Power Supply

Specifications

• Mfr Part Number: SP-750M
• Features:
  • Supports the latest ATX 12V V2.3 & EPS 12V standards
  • Guaranteed to deliver 750W continuous output @ 40℃ operating environment
  • High current & single +12V rail provides superior performance
  • 100% High quality Japanese main capacitor ensure superb performance and reliability
  • Solid state capacitors - great stability at higher operating temperatures, frequencies and currents
  • Double forward ultra-efficient circuitry design for added power savings
  • Synchronous rectification circuit design with DC-DC converter for extremely stable performance and high efficiency
  • Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level
  • Active PFC with Universal AC input
  • Flat, low-profile modular cables allow for easy cable routing and increased airflow
  • Supports multiple core high-end graphic cards & CPU (NVIDIA SLI & AMD CrossFireX Ready)
  • Heavy-duty protection circuitry of Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections
• Maximum Power: 750 Watts
• Input:
  • Input Voltage: 100 ~ 240V AC
  • Input Current (max): 10 ~ 5A
  • Input Frequency Range: 47 ~ 63Hz
• Form Factor: Intel ATX 12V 2.3
• Hold-up Time: 16 ms @ 80% load at 230VAC 50Hz input
• Power Good Signal: 100 ~ 500 ms
• Cooling System: 140mm, 2300rpm ± 10%
• Efficiency: 82-88% efficiency @ 20-100% load
• Power Factor Correction: Active PFC
• MTBF: >100,000 hours
• Output: +5V @ 25A; +3.3V @ 25A; +12V @ 62A; -12V @ 0.8A
• Connector: 1x 24pin Main Connector; 1x 4+4pin ATX 12V Power Connector; 4x 6+2pin PCI-Express Connectors; 9x 5pin SATA Connectors; 6x 4pin Peripheral Connectors
• Safety/EMI: TUV, CE, UL, CUL, FCC, BSMI
• Color: Black
• Dimensions (WxLxH): 5.9 x 6.3 x 3.4 inch / 150.0 x 160.0 x 86.0 mm
