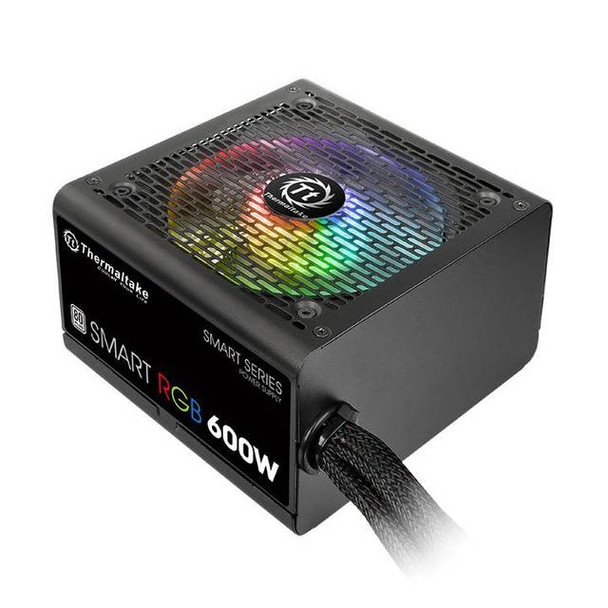

Thermaltake Smart RGB PS-SPR-0600NHFAWU-1 600W 80 PLUS ATX12V 2.3 Power Supply w/ Active PFC (Black)

Specifications

• Mfr Part Number: PS-SPR-0600NHFAWU-1
• Features:
  • One Button to Your Desired Color
  • 10 LED Light Bulbs
  • Ultra Quiet 120mm Fan
  • High Amperage Single +12V Rail
  • Multiple Connectors
  • 80 PLUS Certified and Kaby Lake Ready
  • RGB Lighting Provides Best Aesthetics for All Chassis
• Maximum Power: 600 W
• Input:
  • Voltage: 100 VAC ~ 240 VAC
  • Current: 10 AåÊmax
  • Frequency Range: 50 ~ 60 Hz
• Form Factor: Intel ATX 12V 2.3
• Efficiency: 82-86% efficiency @ 20-100% load
• Hold up Time:åÊ16msec (minimum) within 60% load
• Power Good Signal: 100 ~ 500 ms
• Power Factor Correction: Active PFC
• Fan: 120mm Fan (1800 R.P.M. å± 10%)
• MTBF: 100,000 hours
• Output: +3.3V @ 22A; +5V @ 17A; +12V @ 42A; -12V @ 0.5A; +5VSB @ 2.5A
• Connectors: 1x 20+4-pin Main Power Connector, 1x 4+4-pin ATX 12V Connector, 2x 6+2-pin PCI-Express Connectors, 6x 4-pin SATA Connectors, 3x 4-pin Peripheral Connectors, 1x Floppy Connector
• Safety Approval: CE/CB/TUV/ UL/ FCC/ EAC
• Protection:åÊOVP, OPP, SCP
• Color: Black
• Dimension (WxDxH): 150.0 x 140.0 x 86.0 mm
