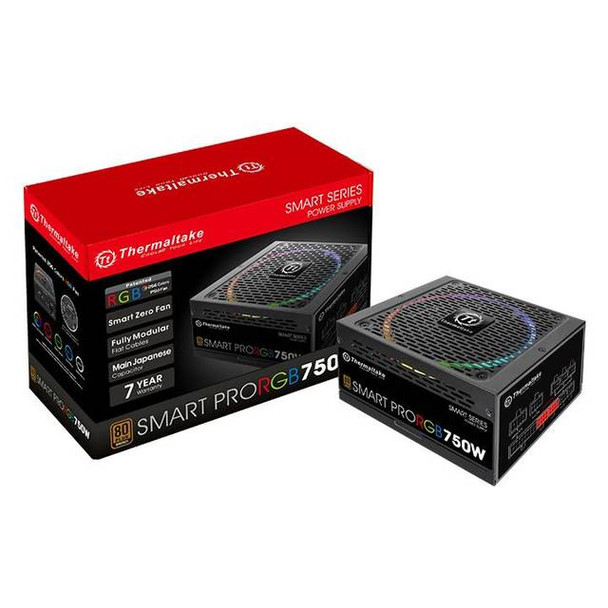

Thermaltake Smart Pro RGB PS-SPR-0750FPCBUS-R 750W 80 PLUS Bronze ATX12V 2.4 & EPS12V 2.92 Power Supply w/ Active PFC & Full Modular (Black)

Specifications

• Mfr Part Number: PS-SPR-0750FPCBUS-R
• Features:
  • Smart Pro RGB 750W Bronze Fully Modular
  • One Button to Your Desired Color
  • Power Supply Fan Face-Up Placement for Better Cooling
  • Riing 14 RGB Fan with Concentrated Compression Fan Blade
  • Ultra Quiet Smart Zero Fan
  • < 50 mV Low Ripple Noise
  • Strict Voltage Regulation < ±3%
  • High Quality Japanese 105°C/221°F Main Capacitor
  • High Amperage Single +12V Rail & DC to DC Design
  • Fully Modular Low-Profile Flat Cable
  • 80 PLUS Bronze Certified and Skylake Ready
  • RGB Lighting Provides Best Aesthetics for All Chassis
• Maximum Power: 750 Watts
• Input:
  • Voltage: 100 V ~ 240 V
  • Current: 12 A
  • Frequency Range: 50 ~ 60 Hz
• Form Factor: Intel ATX 12V 2.4 & EPS 12V 2.92
• Efficiency: Meet 80 PLUS Bronze at 115Vac input
• Hold-up Time: > 16msec at 75% load
• Power Good Signal: 100 ~ 500 ms
• Power Factor Correction: Active PFC
• Fan: 140mm Hydraulic Bearing Fan
• MTBF: 100,000 hours
• Output: +3.3V @ 22A; +5V @ 22A; +12V @ 62.5A; -12V @ 0.3A; +5VSB @ 2.5A
• Connectors: 1x 24-pin Main Power Connector, 1x 4+4-pin ATX 12V Connector, 4x 6+2-pin PCI-Express Connectors, 9x 5-pin SATA Connectors, 6x 4-pin Peripheral Connectors, 1x Floppy Connector
• Safety Approval: CE, cTUVus, TUV SUD, FCC, CCC, BSMI, EAC
• Color: Black
• Dimension (WxDxH): 150.0 x 170.0 x 86.0 mm
