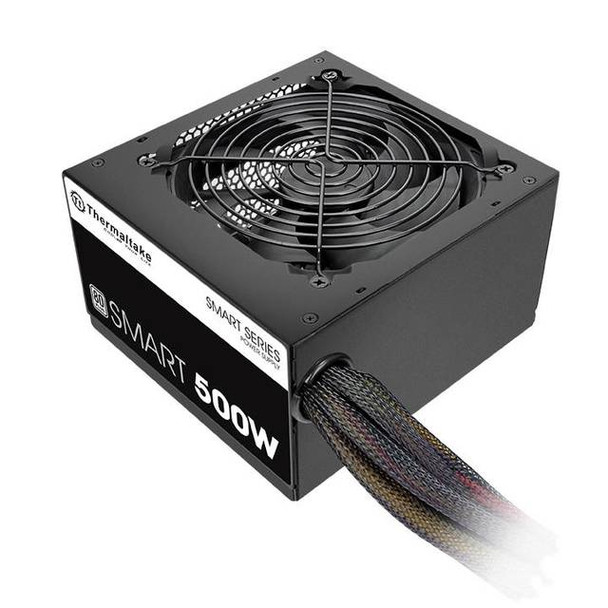

Thermaltake Smart 500W 80 PLUS ATX12V 2.3 Power Supply (Black)

Specifications

• Mfr Part Number: PS-SPD-0500NPCWUS-W
• Features:
  • Thermaltake Smart 500W
  • 120mm ultra quiet fan
  • Multiple connectors
  • 80 plus standard certified and haswell ready
  • High-quality components
  • Single +12V output
• Maximum Power: 500 Watts
• Input:
  • Voltage: 100 VAC ~ 240 VAC
  • Current: 8 A (max)
  • Frequency Range: 50 ~ 60 Hz
• Form Factor: Intel ATX 12V 2.3
• Efficiency: 82-86% efficiency @ 20-100% load
• Hold-up Time: 16ms (min) within 60% load
• Power Good Signal: 100 ~ 500 ms
• Power Factor Correction: Active PFC
• Fan: 120mm Fan (2400 RPM ± 10% )
• MTBF: >100,000 hours
• Output: +3.3V @ 20A; +5V @ 15A; +12V @ 35A; -12V @ 0.5A; +5VSB @ 2.5A
• Connectors: 1x 24pin Main Connector, 1x 4+4pin ATX 12V Connector, 2x 6+2pin PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x 4pin Floppy Connector
• Safety Approval: CE, CB, TUV, UL, FCC
• Color: Black
• Dimensions (WxDxH): 150.0 x 140.0 x 86.0 mm
