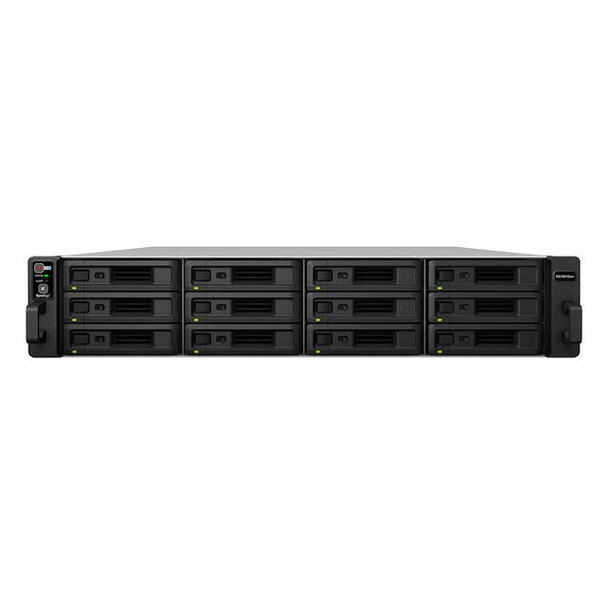

Synology RackStation RS18016XS+ Scalable and converged 12-bay Rackmount NAS for Enterprises

Specifications

• Mfr Part Number: RS18016XS+
• Hardware:
  • CPU: Intel Xeon E3-1230 v2 Quad Core 3.3GHz w/ Floating Point & Hardware Encryption Engine
  • Memory: 8GB DDR3 ECC RAM (Expandable, up to 32GB)
  • Drive Bays: 12x 3.5" or 2.5" SATA2/SATA3 HDD (Hard drive not included)
  • Max Internal Capacity: 96TB (12x 8TB HDD) (Capacity may vary by RAID types)
  • Hot Swappable Drive
  • External HDD Interface: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 2x Expansion Port
  • LAN: 4x Gigabit (with Link Aggregation / Failover support)
  • Wake on LAN/WAN
  • Fan: 4x (80 x 80mm) Fans
  • Easy Replacement System Fan
  • Wireless Support (dongle)
  • Power Recovery
  • Noise Level: 45.1 dB(A)
  • Scheduled Power On/Off
  • Power Supply Unit/Adapter: 2X 500W
  • AC Input Power Voltage: 100 ~ 240V AC
  • Power Frequency: 50/60Hz, Single Phase
  • Redundant Power Supply (for xs+ and RP model)
• Networking Protocols: CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)
• Security: FTP over SSL/TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection
• File System:
  • Internal Drives: Btrfs, EXT4
  • External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+
• File Sharing:
  • Max User Accounts: 16000
  • Max Groups: 512
  • Max Shared Folder: 512
  • Max Shared Folder Sync Tasks: 32
  • Max Concurrent CIFS/AFP/FTP Connections: 2048
  • Windows Access Control List (ACL) Integration
  • NFS Kerberos Authentication
• Utilities: Synology Assistant
• Applications:
  • Antivirus Essential
  • Antivirus by McAfee (Trial)
  • Audio Station
  • Central Management System
  • Cloud Station
  • Cloud Sync
  • Directory Server
  • DNS Server
  • Download Station
  • Glacier Backup
  • HiDrive Backup
  • iTunes Server
  • Java Manager
  • Mail Server
  • Mail Station
  • Media Server
  • Note Station
  • Photo Station
  • RADIUS Server
  • Surveillance Station
  • Video Station
  • VPN Server
  • Notes
• Management:
  • Auto DSM Upgrade
  • Push Notification - MSN/Skype/Mobile Devices
  • Email/SMS Notification
  • Customized User Quota
  • Customized Administrator/User Group
  • Syslog Support
  • DDNS Support
  • IPv6 Support
  • VLAN support
  • PPPoE
  • Hotspot
  • Resource Monitor
  • Connection Manager
  • UPS Management
  • Scheduled Power On/Off
  • Custom Management UI HTTP/HTTPS Ports
• Backup Solutions: Network backup; local backup; desktop backup; configuration backup; OS X Time Machine; Backup data to Amazon Glacier; shared folder sync - maximum task number: 32
• Supported Clients: Windows XP or later, Mac OS X 10.5 or later, Ubuntu 9.04 or later
• Supported Browsers: Chrome, Firefox, Internet Explorer 8 or later, Safari 5 or later, Safari (iOS 5 or later on iPad), Chrome (Android 4.0 on tablets)
• Power Consumption: 106.54 W (Access), 71.78 W (HDD Hibernation)
• British Thermal Unit: 363.77 BTU/hr (Access), 245.09 BTU/hr (HDD Hibernation)
• Certifications: FCC Class A, CE Class A, BSMI Class A
• Dimensions (WxDxH): 430.0 x 692.0 x 88.0 mm
• Weight: 14.5 kg
• Package Contents: Main Unit, Welcome Note, Accessory Pack, 2x AC Power Cord
• RoHS Compliant
