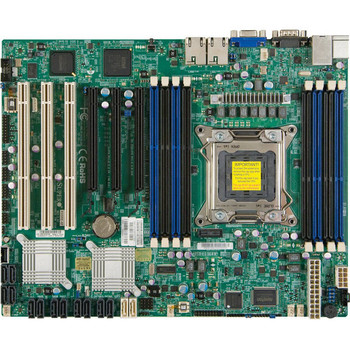

Supermicro X9SRH-7F-B LGA2011/ Intel C602J/ DDR3/ SATA3&SAS2/ V&2GbE/ ATX Server Motherboard

Specifications

• Mfr Part Number: X9SRH-7F-B
• CPU: LGA2011
  • Supports Intel Xeon E5-2600/E5-1600 Processors
  • Supports up to 8 cores
  • Supports up to 135W
• Chipset: Intel C602J
• Memory: 8x 240pin DDR3-1600/1333/1066 DIMM Slots; Supports up to 256GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
• Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8), 1x PCI-Express 2.0 x8 Slot, 3x PCI-32 Slots
• SATA: 2x SATA3 Ports, 4x SATA2 Ports; Support RAID 0, 1, 5, 10
• SAS: 8x SAS2 Ports; Support RAID 0, 1, 10
• Video: Matrox G200eW Graphics Controller w/ 16MB DDR2 Video Memory
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 9x USB 2.0 Ports (2 rear, 6 via headers, 1 Type A), 1x PS/2 Keyboad Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: ATX; 12.0 x 9.6 inch / 30.5 x 24.4 cm
• RoHS Compliant
