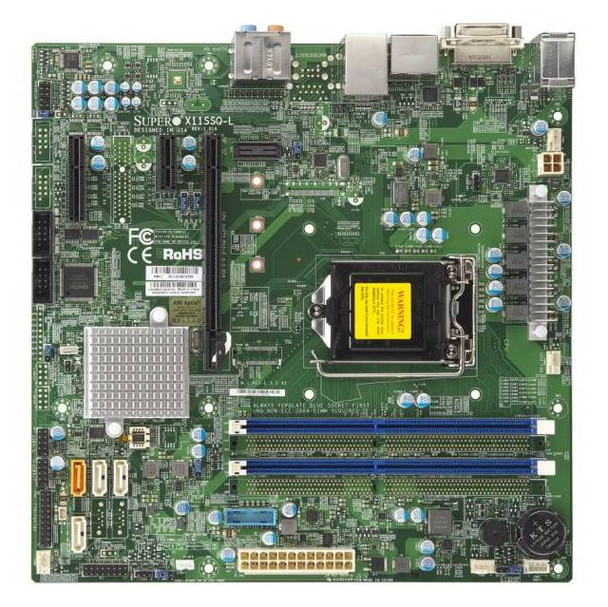

Supermicro X11SSQ-L-O LGA1151/ Intel H110/ DDR4/ SATA3&USB3.0/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: X11SSQ-L-O
• CPU: LGA1151
  • Supports 6th Generation Intel Core i7/ i5/ i3, Pentium, Celeron Processors

  • Support up to 91W TDP
• Chipset: Intel H110
• Memory: 2x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x4 Slot, 1x PCI-Express 2.0 x1 Slot
• SATA: 4x SATA3 Ports
• Audio: Realtek ALC888S 7.1-Channel High Definition Audio CODEC
• LAN: Intel PHY i219LM Gigabit Ethernet Controller
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x Independent Displays, 1x RJ45 LAN Port
• Form Factor: MicroATX, 9.6 x 9.6 inch / 24.38 x 24.38 cm
