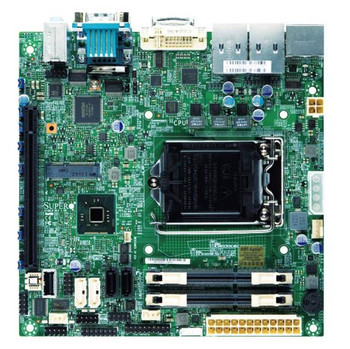

Supermicro X10SLV-B LGA1150/ Intel H81/ DDR3/ SATA3&USB3.0/ A&2GbE/ Mini-ITX Motherboard

Specifications

• Mfr Part Number: X10SLV-B
• CPU: LGA1150
  • Supports 4th Generation Intel Core i7/ i5/ i3, Pentium, Celeron Processors
  • Supports up to 95W TDP
• Chipset: Intel H81
• Memory: 2x DDR3-1600 SODIMM Slots, Non-ECC, Max Capacity of 16GB
• Slots: 1x PCI-Express 2.0 x16 Slot, 1x Mini PCI-Express Slot (w/ mSATA)
• SATA: 2x SATA3 Ports (1x mSATA3 Port share with 1x SATA3 Port), 2x SATA2 Ports
• Audio: Realtek ALC888S High Definition Audio CODEC
• LAN: Intel i217V and Intel i210AT Gigabit Ethernet Controllers
• Ports: 2x USB 3.0 Ports, 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 1x DVI Port, 1x HDMI Port, 1x DisplayPort, 5x Serial Ports (2 rear, 3 via headers), 2x RJ45 LAN Ports, Audio I/O Jacks
• Form Factor: Mini-ITX, 6.7 x 6.7 inch
