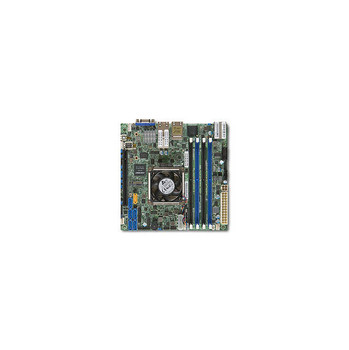

Supermicro X10SDV-TP8F-B Intel Xeon D-1518/ DDR4/ SATA3&USB3.0/ V&8GbE/ Flex ATX Motherboard & CPU Combo

Specifications

• Mfr Part Number: X10SDV-TP8F-B

• CPU (Included): Intel Xeon D-1518 Processor; Support up to 35W TDP (Quad-Core)

• Chipset: System on Chip

• Memory: 4x DDR4-2133/ 1866/ 1600MHz DIMM Slots, Support up to 128GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory

• Slots: 2x PCI-Express 3.0 x8 Slots, 1x M.2 Slot (M key 2242/ 2280/ 22110, PCI-Express 3.0 x4), 1x Mini PCI-Express Slot (supports mSATA, PCI-Express 2.0 x1)

• SATA: 4x SATA3 Ports, Supports RAID 0, 1, 5, 10 RSTe

• Video: Aspeed AST2400 Graphics

• LAN: D-1500 SoC Dual Port 10-Gigabit SFP+ Controller, Intel i350-AM4 Quad Port Gigabit Ethernet Controller, Intel i210 Dual Port Gigabit Ethernet Controller

• Ports: 2x USB 3.0 Ports, 5x USB 2.0 Ports (4 via headers, 1 Type A), 1x VGA Port, 2x 10G SFP+ LAN Ports, 6x RJ45 LAN Ports, 1x Dedicated IPMI LAN Port

• Form Factor: Flex ATX, 9.00 x 7.25 inch / 22.86 x 18.42 cm

• Intel Xeon D-1518 is included with this motherboard.

• RoHS Compliant
