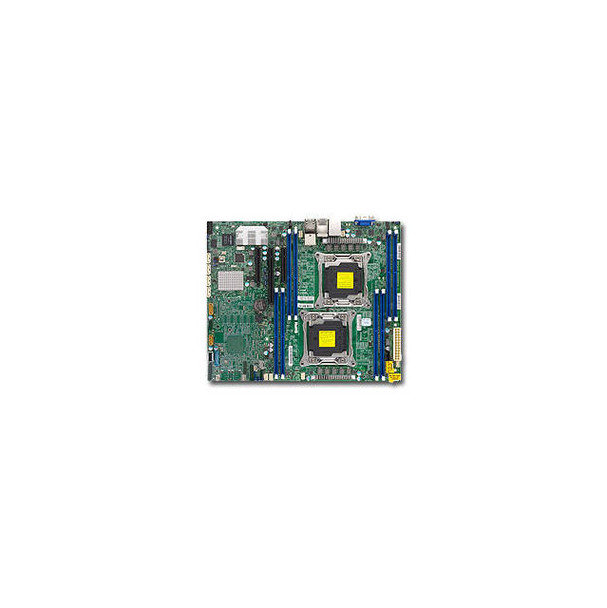

Supermicro X10DRL-IT-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&4GbE/ ATX Server Motherboard

Specifications

• Mfr Part Number: X10DRL-IT-B
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 v4/ v3 Family Processors

  • Support up to 22 Cores
  • Support up to 55MB Cache

  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express

• Memory: 8x 288pin DDR4-2400/ 2133/ 1866/ 1600MHz DIMM Slots, Support up to 1TB ECC/ 3DS Load Reduced Memory or up to 256GB ECC/REG Memory

• Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x8 Slots

• SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10 (I-SATA 4 and I-SATA 5 support SATA DOM)

• Video: Aspeed AST2400 BMC Graphics

• LAN: Intel i210 Dual Port Gigabit Ethernet Controller; Intel X540 Dual 10-Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)

• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 3x USB 2.0 ports (2 via header + 1 Type A), 1x VGA Port, 2x RJ45 10GBase-T Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port

• Form Factor: ATX, 12.00 x 10.00 inch / 30.48 x 25.4 cm

• RoHS Compliant
