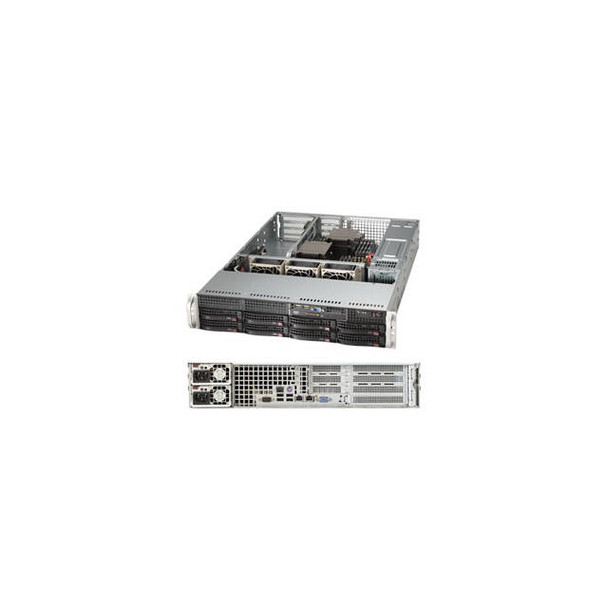

Supermicro SuperServer SYS-6028R-WTRT Dual LGA2011 740W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6028R-WTRT
• Motherboard: Super X10DRW-iT
• Processor: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Cache up to 45MB
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
• Slots: 4x PCI-Express 3.0 x8 Slots (2 Full-height Full-length, 2 Full-height Half-length)
• SATA: Customizable storage, SATA3 Support RAID 0, 1, 5, 10
• Video: ASPEED AST2400 BMC Graphics
• LAN: Intel X540 Dual Port 10-Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
• Drive Bays: 8x 3.5" Hot-swap SAS/SATA HDD Trays
• Backplane: 1x 2U SAS backplane w/ Enclosure Management
• Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 2U Rackmount
• Power Supply: 740W 80 PLUS Platinum Certified (1+1) Redundant high-efficiency power supply with PMBus
• System Cooling: 3x 80mm 7,000 RPM 4-pin PWM Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset, UID
  • LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
• Color: Black
• Dimensions (WxDxH): 17.2 x 25.5 x 3.5 inch / 437.0 x 648.0 x 89.0 mm
• Gross Weight: 52.0 lbs / 23.6 kg
• RoHS Compliant
