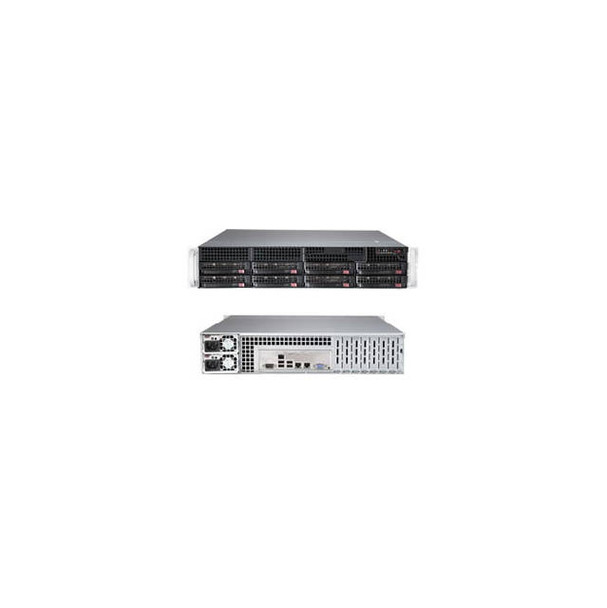

Supermicro SuperServer SYS-6028R-TR Dual LGA2011 740W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6028R-TR
• Motherboard: Super X10DRi
• Processor: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Cache up to 45MB
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
• Slots: 3x PCI-Express 3.0 x16 Slots (Low-profile), 3x PCI-Express 3.0 x8 Slots (Low-profile)
• SATA: 8x SATA3 Ports, 2x SATA3 Powered Ports that support SATA DOM, Support RAID 0, 1, 5, 10
• Video: ASPEED AST2400 BMC Graphics
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 8x 3.5" Hot-swap SATA HDD Trays
• Backplane: 2U SAS/SATA Backplane
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x USB Type A Port (header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 2U Rackmount
• Power Supply: 740W 80 PLUS Platinum Certified (1+1) Redundant high-efficiency power supply with PMBus
• System Cooling: 3x 80x80x38mm Counter-rotating PWM Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset, UID
  • LEDs: Power Status, HDD Activity, 2x Network Activity, System information (overheat/UID)
• Color: Black
• Dimensions (WxDxH): 17.2 x 25.5 x 3.5 inch / 437.0 x 647.0 x 89.0 mm
• Gross Weight: 36.0 lbs / 16.4 kg
• RoHS Compliant
